APP Sensor Replacement

  1. Remove the throttle cable (see 2006-07 MODEL ).
  2. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).

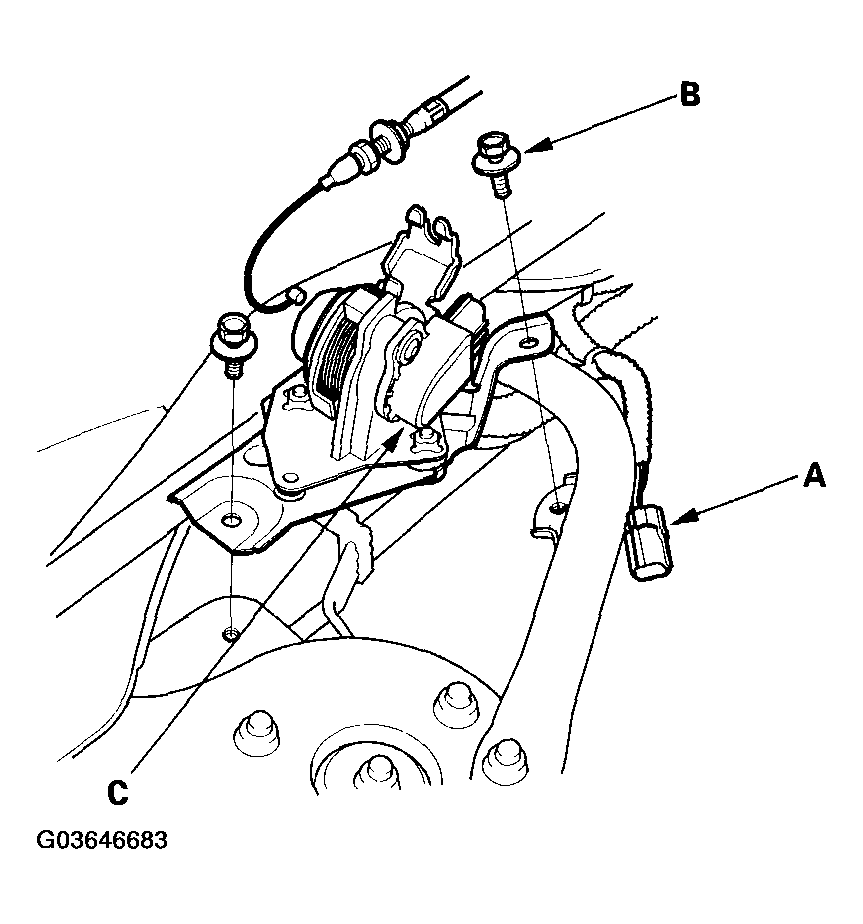

    Fig 1: Disconnecting Accelerator Pedal Position Sensor 6P Connector
    G03646683Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the APP sensor (C).
  4. Install the sensor in the reverse order of removal.
