Throttle Actuator Control Module Replacement

  1. Remove the right kick panel, refer to 2-door (see 2-DOOR - DOOR SILL AREA or 4-door (see 4-DOOR - FRONT DOOR SILL AREA .
  2. Disconnect the throttle actuator control module 16P connector (A).

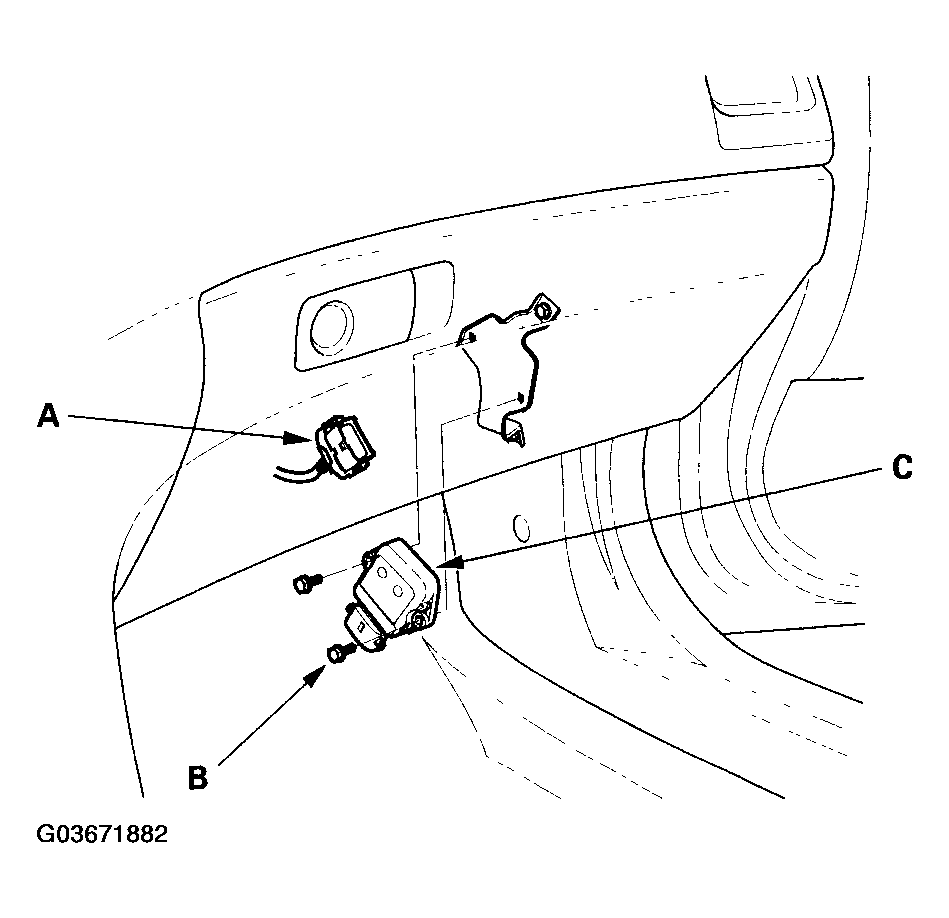

    Fig 1: Disconnecting Throttle Actuator Control Module 16P Connector
    G03671882Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the throttle actuator control module (C).
  4. Install the control module in the reverse order of removal.
