Passenger's Power Window Motor Test

Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ), and disconnect the connector.
Test the motor in each direction by connecting battery power and ground to the passenger's power window switch 8P connector according to the table.

Fig 1: Passenger's Power Window Switch 8P Connector Connection Battery Power And Ground Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Passenger's Power Window Switch 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test (see POWER WINDOW MASTER SWITCH INPUT TEST ).
Disconnect the 2P connector from the passenger's power window motor.
Check for continuity between the passenger's power window switch 8P connector terminals No. 7 and No. 8 and the passenger's power window motor 2P connector terminals No. 1 and No. 2.
PASSENGER'S POWER

WINDOW SWITCH

8P CONNECTOR

Terminal No. 7

Terminal No. 8

PASSENGER'S POWER

WINDOW MOTOR

2P CONNECTOR

Terminal No. 2

Terminal No. 1

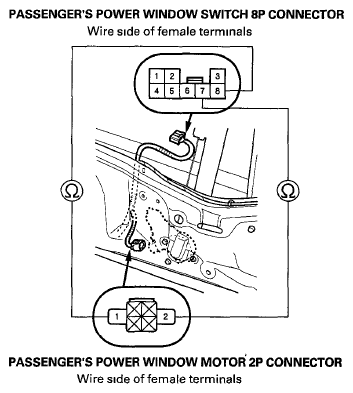

Fig 3: Checking Continuity Between Passenger's Power Window Switch 8P Connector Terminals No. 7 And No. 8
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the wire harness is OK, replace the appropriate power window motor.
