Relays And Control Unit Locations
›
Engine Compartment
Engine Compartment

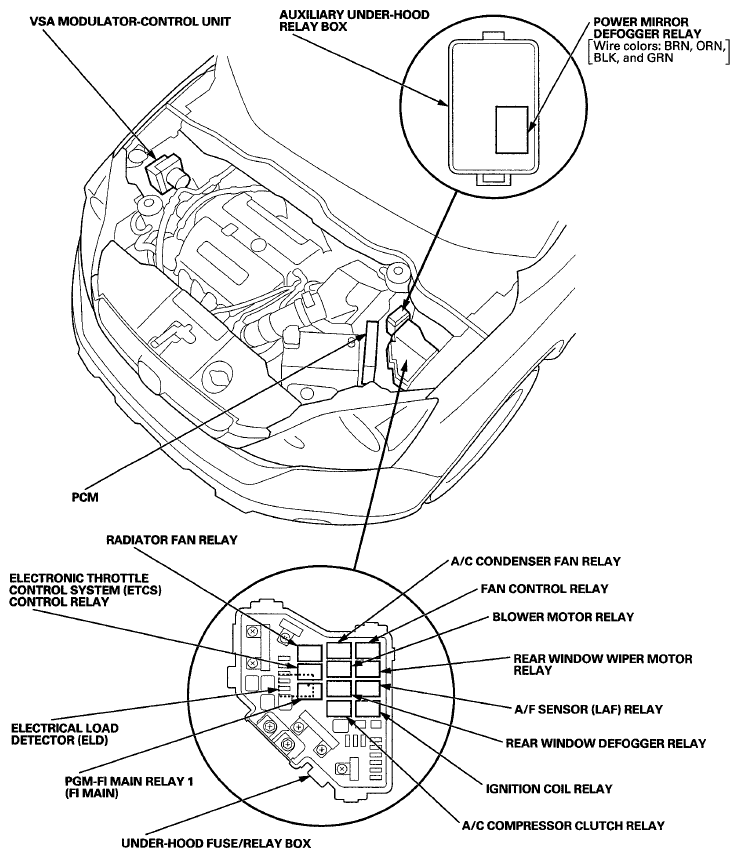

Fig 1: Identifying Engine Compartment Relay And Control Unit Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
