EVAP Canister Purge Valve Replacement

  1. Remove the intake manifold cover (see step 5 under REMOVAL ).
  2. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  3. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
  4. Remove the fuel line (A).

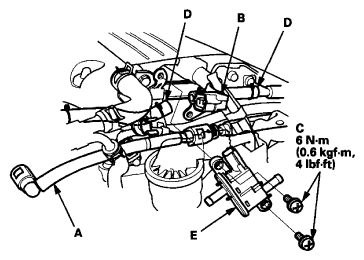

    Fig 1: Fuel Line, EVAP Canister Purge Valve 2P Connector, EVAP Canister Purge Valve With Screws And Hoses With Torque Specifications
    G06610198Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the EVAP canister purge valve 2P connector (B).
  6. Remove the screws (C) and the hoses (D), then remove the EVAP canister purge valve (E).
  7. Install the parts in the reverse order of removal.
