Navigation System Connector Location

WARNING: This page is about a different car, the 2011 Honda CR-V and 2010 Honda CR-V. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Navigation System Connector Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the audio section for audio-navigation unit connector E and G input and outputs (see AUDIO-NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS ('10 MODEL) ).

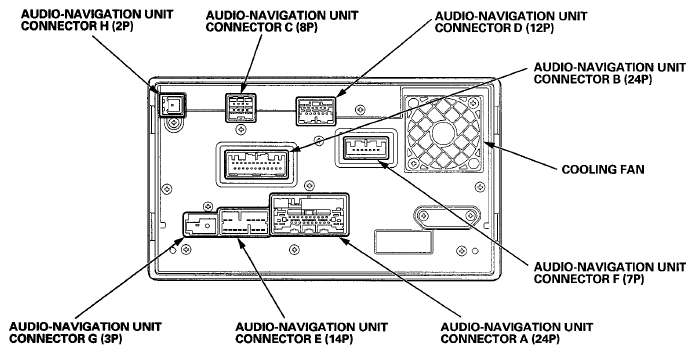

Fig 2: Identifying Audio-Navigation Unit Connectors Terminal Layout

Courtesy of AMERICAN HONDA MOTOR CO., INC.
