Automatic Transmission
›
System Description
›
Electronic Control System
›
PCM A/T Control System Electrical Connections - K24Z1 Engine
PCM A/T Control System Electrical Connections - K24Z1 Engine

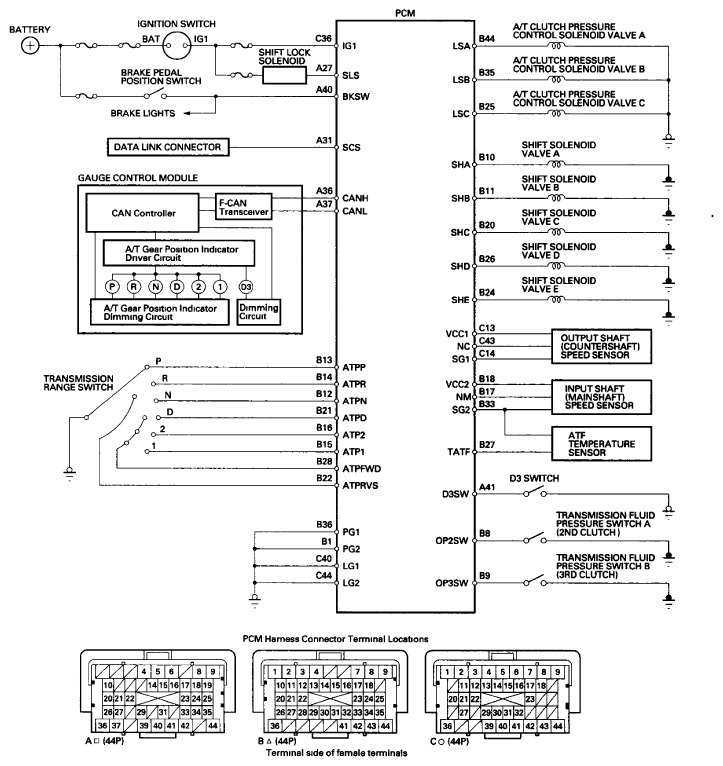

Fig 1: PCM A/T Control System Electrical Connections Diagram (K24Z1 Engine)
