Transfer Assembly Removal

Shift the transmission into N.
Raise the vehicle on a lift, and make sure it is supported securely.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig 1: Drain Plug And Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Disconnect the A/F sensor connector (K24Z1 engine) and the secondary HO2S connector.

Fig 2: Disconnecting A/F Sensor Connector (K24Z1 Engine) And Secondary HO2S Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
K24Z1 engine: Remove the A/F sensor harness and the secondary HO2S harness from the harness clamps.
K24Z6 engine: Remove the secondary HO2S harness from the harness clamp.

Fig 3: Identifying Secondary HO2S Harness From Harness Clamps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the three-way catalytic converter (K24Z1 engine) or the under-floor three-way catalytic converter (K24Z6 engine).

Fig 4: Identifying Three-Way Catalytic Converter And Under-Floor Three-Way Catalytic Converter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 5: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.

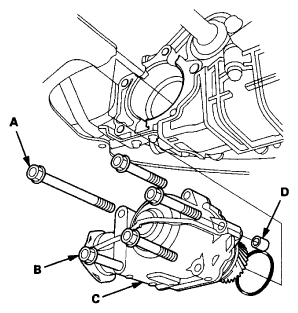

Remove the transfer assembly mounting bolts (A) (4), and pull out the bolt (B) to the limit of travel.

Fig 6: Identifying Transfer Assembly Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transfer assembly (C) and the dowel pin (D) from the transmission.
