Tailgate Outer Handle Switch Test/Replacement

Open the tailgate, and remove the tailgate trim (see TRIM REMOVAL/INSTALLATION-TAILGATE AREA ).
Disconnect the 2P connector (A) from the tailgate outer handle switch.

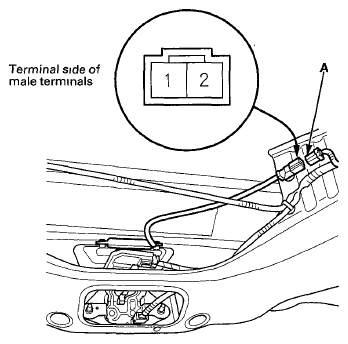

Fig 1: Identifying 2P Connector Terminal Layout
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between terminals No. 1 and No. 2.
- There should be continuity with the outer handle lever pulled.
- There should be no continuity with the outer handle lever released.
If the continuity is not as specified, remove the latch assembly (see TAILGATE LATCH REPLACEMENT ) and then remove the outer handle (A), then replace the tailgate outer handle switch (B).

Fig 2: Identifying Outer Handle And Tailgate Outer Handle Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
