Front Subframe Torque
NOTE:

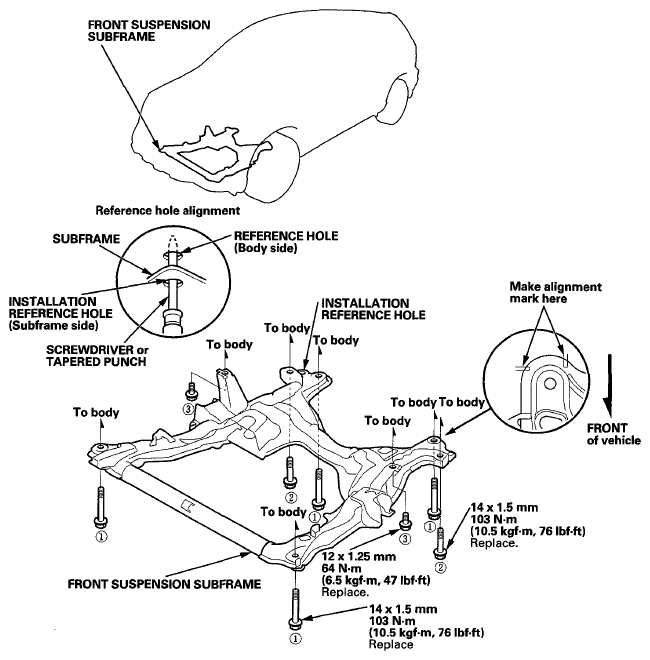

- Before removing the subframe, make a mark where the subframe lines up with the body for reinstallation.
- After loosening the subframe mounting bolts, be sure to replace them with new ones.
- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
- After reinstallation all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).
- Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
