Quarter Glass Replacement

NOTE:

Put on gloves to protect your hands.
Wear eye protection when removing the glass with piano wire.
Use seat covers to avoid damaging any surfaces.
The quarter glass molding will need replacement because it will be damage during glass removal.

Remove the quarter pillar glass trim (see QUARTER PILLAR GLASS TRIM ).
Remove the front seal (A) from the front edge of the quarter glass (B). If necessary, cut the seal with a utility knife.

Fig 1: Removing Front Seal From Front Edge Of Quarter Glass
If the old quarter glass (A) is to be reinstalled, make alignment marks (B) across the glass and the body with a grease pencil over the quarter glass molding (C).

Fig 2: Identifying Alignment Marks Across Glass And Body
Apply protective tape along the inside and outside edges of the body. From pillar side the vehicle, use a knife (A) to cut the front clips (B) of the quarter glass molding (C).

Fig 3: Cutting Front Clips Of Quarter Glass Molding
Make a hole with an awl through the adhesive from inside the vehicle at the front corner of the quarter glass. Push a piece of piano wire through the hole, and wrap each end around a piece of wood.
With a helper on the outside, pull the piano wire (A) back and forth in a sawing motion. Hold the piano wire as close to the quarter glass (B) as possible to prevent damage to the body, and carefully cut through the adhesive (C) in the straight areas and front corner, but not the rear corner.

Fig 4: Pulling Piano Wire Back And Forth In Sawing Motion

Cutting portions

Fig 5: Identifying Cutting Portions
From inside the vehicle, use a knife (A) to cut the rear clip (B) of the quarter glass molding, then cut through the adhesive (C) of the quarter glass rear corner.

Fig 6: Cutting Rear Clip Of Quarter Glass Molding
Carefully remove the quarter glass and the quarter glass molding. Replace the molding with a new one.
With a knife, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in) on the bonding surface around the entire quarter glass opening flange:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
- Remove the molding from the quarter glass.
Clean the body bonding surface with a shop towel dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
If you are reinstalling the old quarter glass, use a putty knife to scrape off all of the old adhesive and the clips from the quarter glass. Clean the bonding surface on the inside face and the edge of the quarter glass with isopropyl alcohol. Make sure the bonding surface is kept free of water, oil, and grease.
Apply primer to the clip mounting areas on the quarter glass, and let it dry. Attach the upper clip (A), the lower clip (B), and the front seal (C) with the adhesive tape to the inside face of the quarter glass (D) as shown.
- Be careful not to touch the glass where the adhesive will be applied.
- Be sure installing the clips with its convex portions (E) downward.
Fig 7: Locating Upper Clip, Lower Clip, Front Seal And Quarter Glass
Set the quarter glass (A) in the opening, and make alignment marks (6) across the quarter glass and the body with a grease pencil at the three points shown. Make sure pins (C) of the both clips (D) contact with the edge of the body holes. Be careful not to touch the glass where the adhesive will be applied.

Fig 8: Locating Quarter Glass, Pins And Clips
Remove the quarter glass.

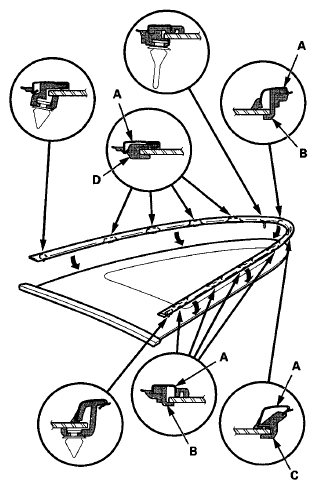

Install the quarter glass molding (A).
1. Hold the molding up on the glass, and fit the hooks (B) of the molding to the edge of the glass rear corner first.
2. From the rear corner to the front, hook the lower clip (C) and the upper clips (D) of the molding to along the edges of the glass.
3. Push the molding into place securely.
NOTE:
- Take care not to bend or damage the molding.
- Be careful not to touch the glass where the adhesive will be applied.
- Be sure the front seal contacts the upper and lower ends of the molding.
Fig 9: Installing Quarter Glass Molding

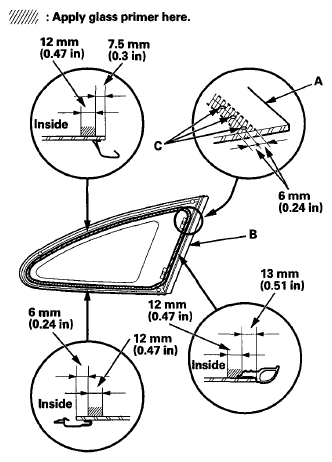

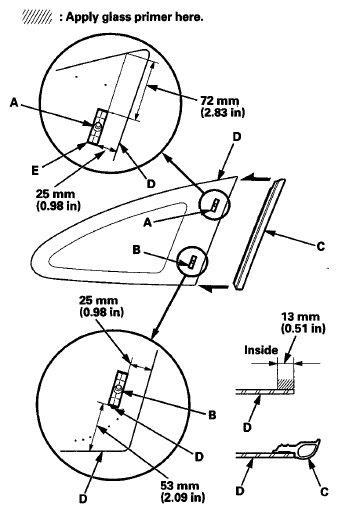

With an applicator, apply a light coat of glass primer to the quarter glass (A) along the edge of the front seal (B) as shown, then lightly wipe it off with gauze or cheesecloth:
- Apply the glass primer to the corner portions of the quarter glass using the printed dots (C) on the quarter glass as a guide.
- Do not apply body primer to the quarter glass, and do not mix up the body and the glass primer applicator.
- Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the quarter glass properly, causing a leak after the quarter glass is installed.
- Keep water, dust, and abrasive materials away from the primed surface.
Fig 10: Applying Light Coat Of Glass Primer To Quarter Glass Along Edge Of Front Seal

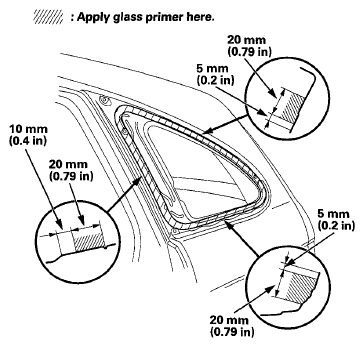

With an applicator, carefully apply a light coat of body primer to any exposed paint or metal around the flange where the adhesive will be applied. Let the body primer dry for at least 10 minutes:
- Do not apply body primer to any remaining original adhesive on the flange.
- Be careful not to mix up the body and the glass primer applicator.
- Never touch the primed surfaces with your hands.
Fig 11: Applying Light Coat Of Body Primer To Any Exposed Paint Or Metal Around Flange Where Adhesive Will Be Applied
Cut a "V" in the end of the nozzle (A) on the adhesive cartridge as shown.

Fig 12: Identifying V Cut In End Of Nozzle On Adhesive Cartridge

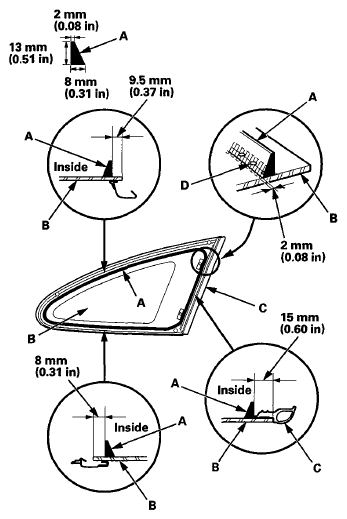

Put the cartridge in a caulking gun, and run a continuous bead of adhesive (A) to the quarter glass (B) along the front seal (C) as shown. With the printed dots on the quarter glass as a guide, apply the adhesive to the rear corner, upper corner, and lower corner portions of the quarter glass.
- Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.
- Use the printed dots (D) as a guide when you apply the adhesive to the corners of the quarter window.
Fig 13: Applying Continuous Bead Of Adhesive To Quarter Glass Along Front Seal

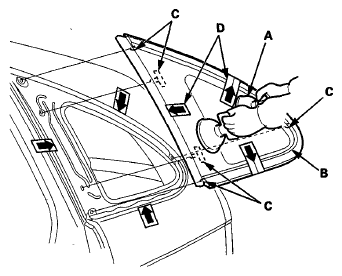

Use suction cups (A) to hold the quarter glass (B) over the opening, align it with the clips (C) and alignment marks (D) you made in step 13, and set it down on the adhesive. Lightly push on the quarter glass until its edges are fully seated on the adhesive all the way around.
NOTE: Do not open or close any of the doors for about an hour until the adhesive is dry.

Fig 14: Aligning Quarter Glass With Clips And Alignment Marks
Remove the excess adhesive with a putty knife or a shop towel dampened with isopropyl alcohol.
Wait at least an hour for the adhesive to dry, then spray water over the quarter glass and check for leaks. Mark the leaking areas, let the quarter glass dry, then seal with sealant. Let the vehicle stand for at least 4 hours after quarter glass installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.
Reinstall all remaining removed parts.
NOTE: Advise the customer not to do the following things for 2 to 3 days:
- Slam the doors with all the windows rolled up.
- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
