Circuit Diagram

K24Z1 engine

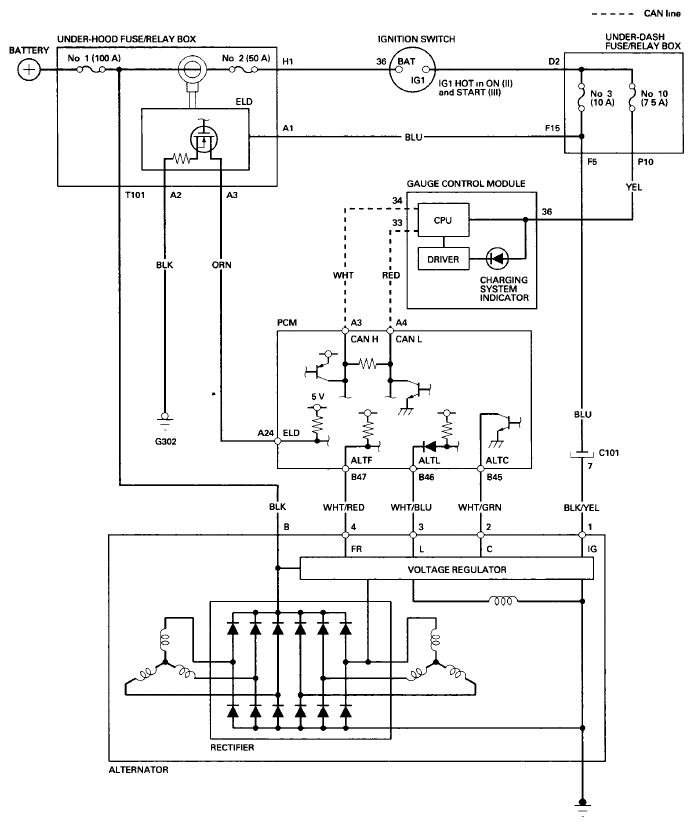

Fig 1: Charging System - Circuit Diagram (K24Z1 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

K24Z6 engine

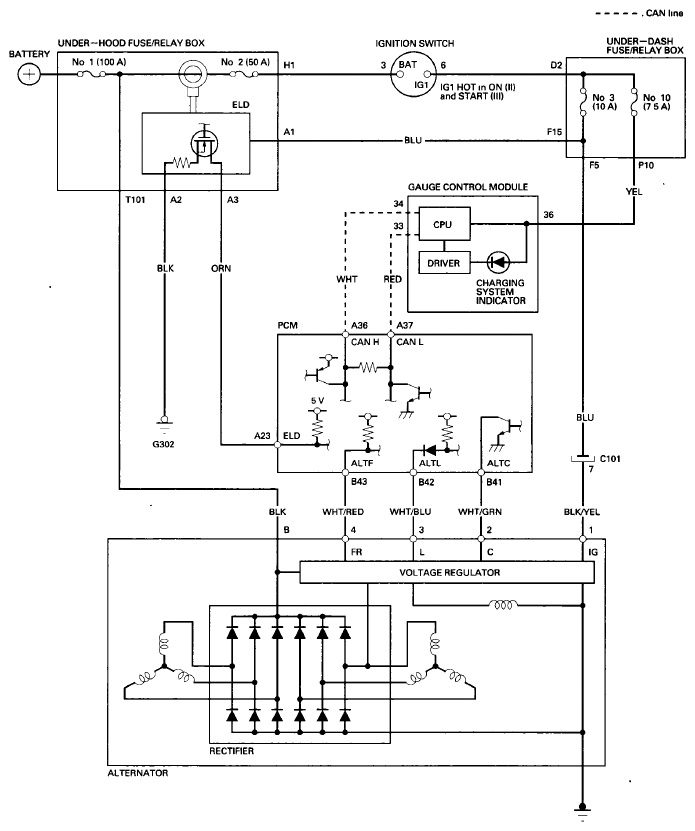

Fig 2: Charging System - Circuit Diagram (K24Z6 Engine)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
