Fuel Tank Unit Removal and Installation: Installation

Temporarily attach a new base gasket (A) to the fuel tank unit (B), then insert the fuel tank unit partially into the fuel tank.
NOTE:
- Be careful not to damage the new base gasket.
- Be careful not to bend the fuel gauge sending unit.
- Do not coat the base gasket with oil.
Transfer the base gasket (A) from the fuel tank unit to the fuel tank.

Fig 2: Identifying Base Gasket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the marks (B) on the fuel tank and the fuel tank unit, then insert the fuel tank unit until it sits on the base gasket.
NOTE: To prevent a fuel leak, check the base gasket, visually or by hand, to make sure it is not pinched.
Using the tool, tighten the new locknut (A) to the specified torque.
NOTE:
- After tightening, make sure the marks are still aligned.
- After installation, check the base gasket visually or by hand to be sure it is not pinched.

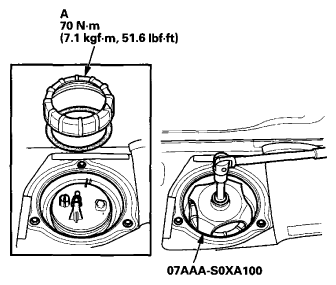

Fig 3: Tightening Locknut With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the fuel tank unit 4P connector.
Reconnect the negative cable to the battery, and turn the ignition switch to ON (II) (but do not operate the starter motor). The fuel pump will run for about 2 seconds, and fuel pressure will rise. Repeat this two or three times, then check for fuel leaks.
Install the parts in the reverse order of removal.
