Oil Pump Overhaul
›
Exploded View
Exploded View

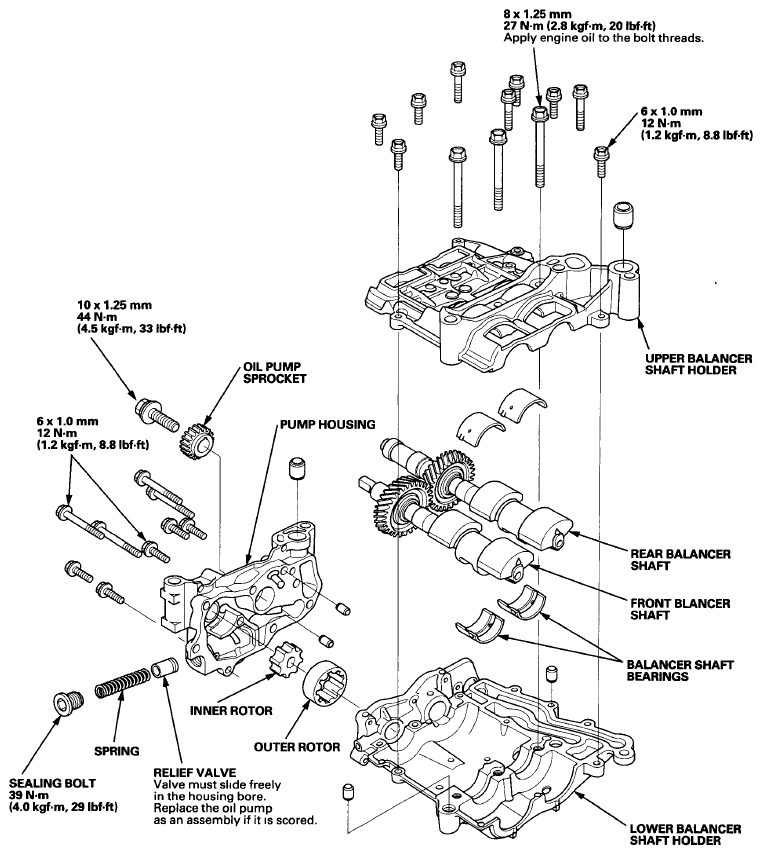

Fig 1: Exploded View If Oil Pump With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
