Honda
›
2007
›
CR-V LX, 2.4 RE4
›
Repair and Diagnosis
›
Engine Performance
›
System
›
EVAP System
›
Component Location Index
Component Location Index

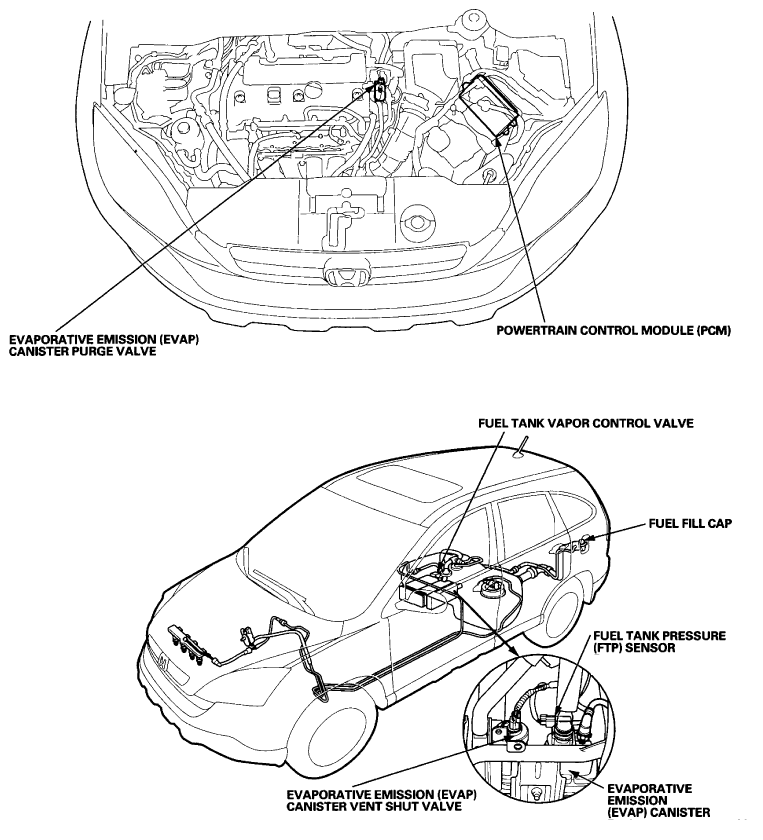

Fig 1: EVAP System Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
