VTEC/VTC
›
System Diagram
System Diagram

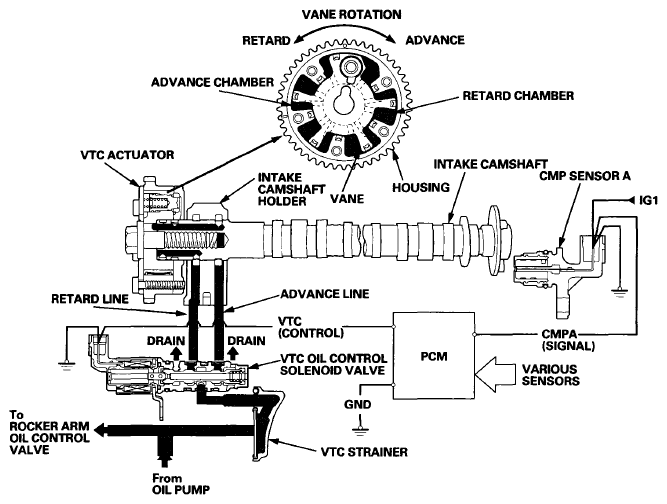

Fig 1: VTEC/VTC System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
