CKP Sensor Replacement

Disconnect the CKP sensor connector (A).

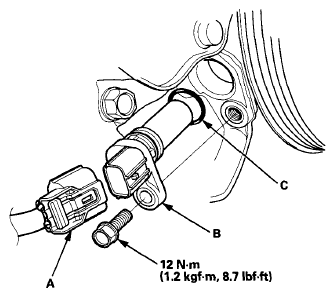

Fig 1: CKP Sensor Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the CKP sensor (B).
Install the parts in the reverse order of removal with a new O-ring (C).
Do the CKP pattern clear/CKP pattern learn procedure (see CKP PATTERN CLEAR/CKP PATTERN LEARN ).
