CMP Sensor B Replacement

Remove the EGR valve (see EGR VALVE REPLACEMENT ).
Disconnect the CMP sensor B connector (A).

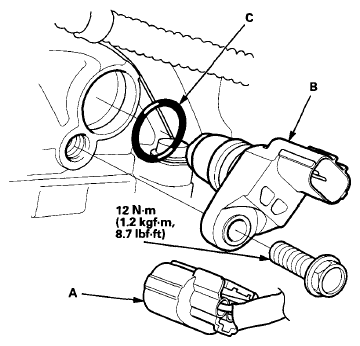

Fig 1: CMP Sensor With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove CMP sensor B (B).
Install the parts in the reverse order of removal with a new O-ring (C).
