Recirculation Control Motor Connector End View

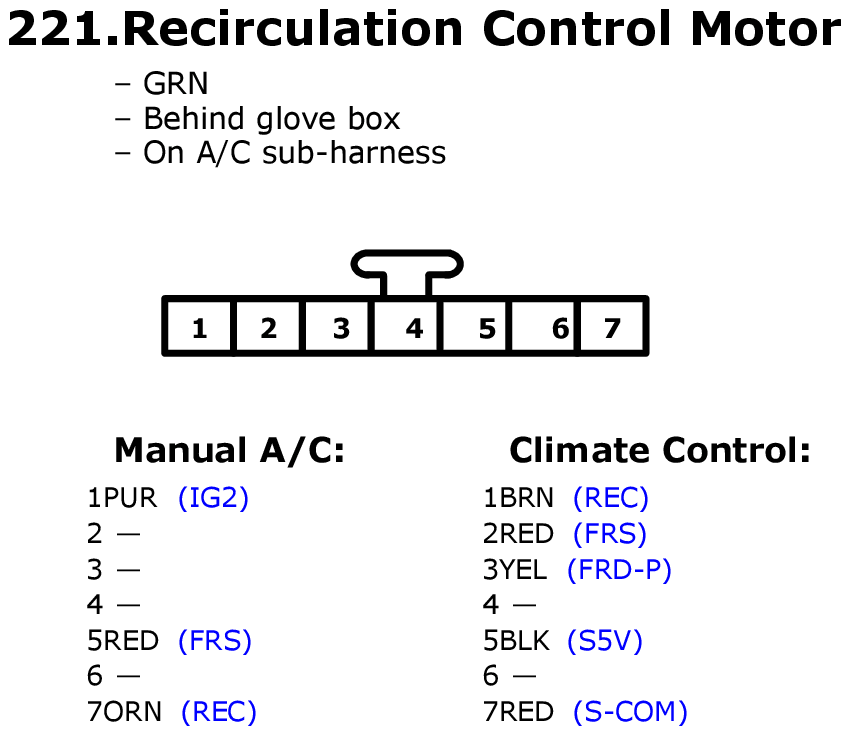

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

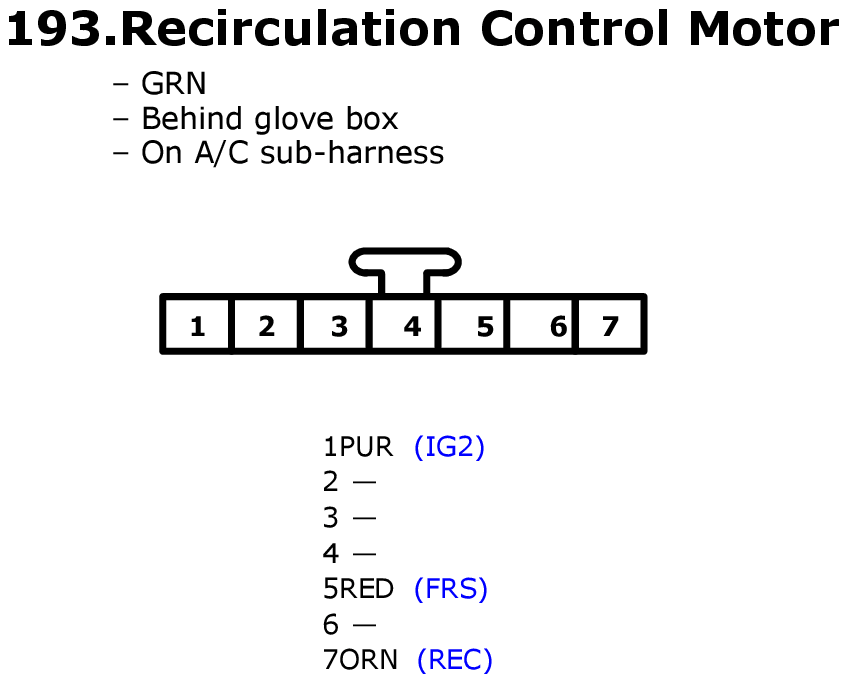

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

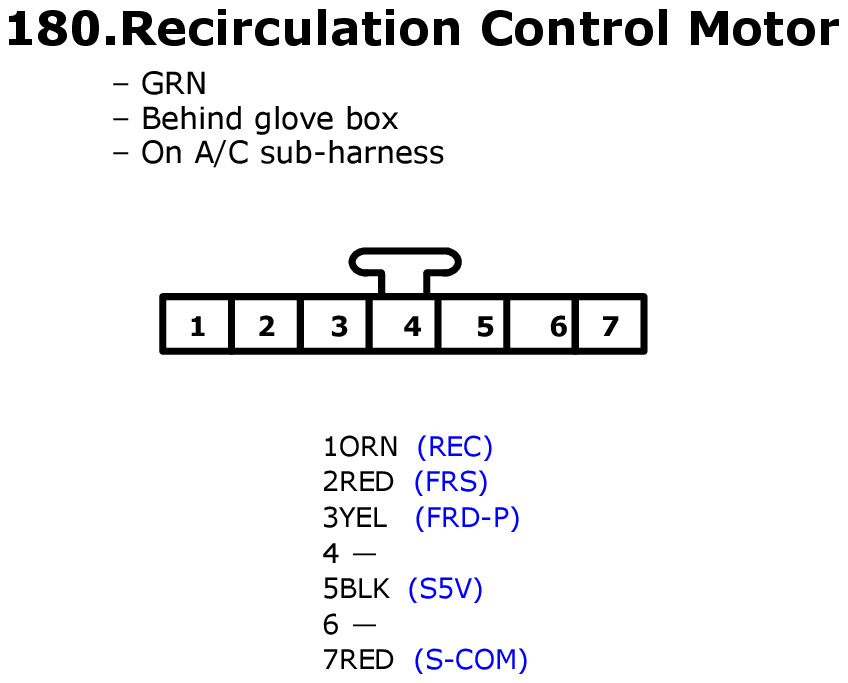

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

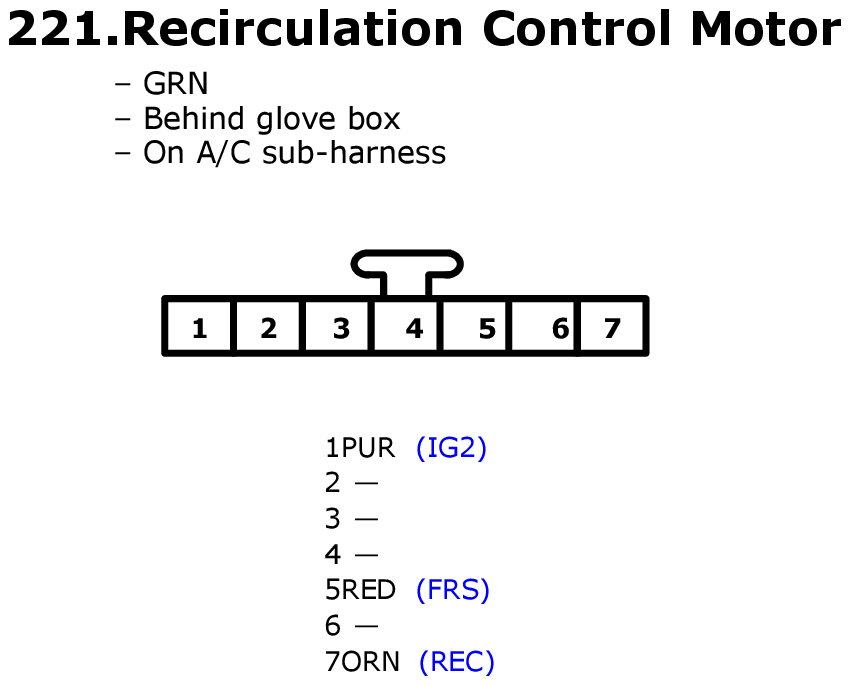

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

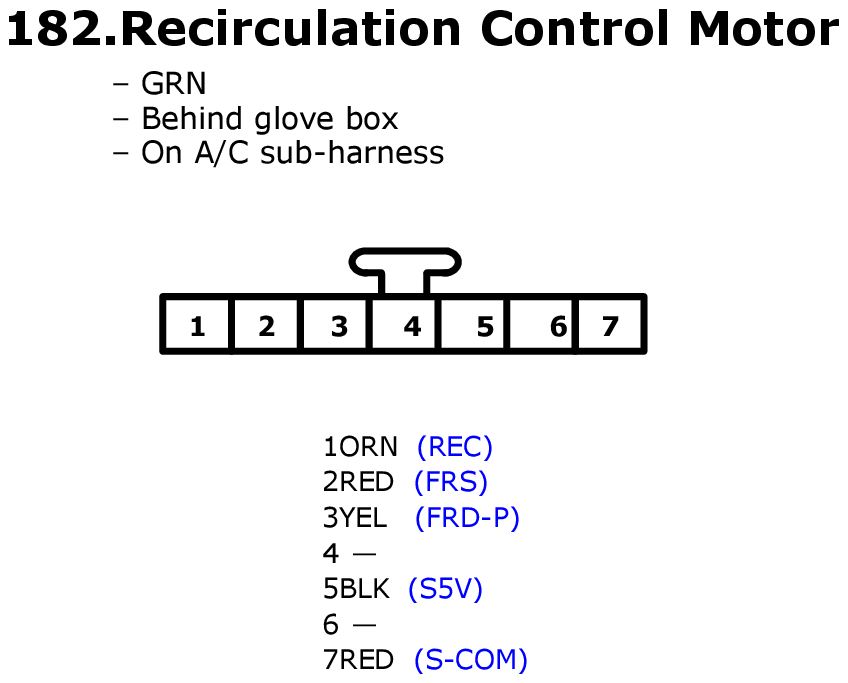

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Recirculation Control Motor Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
