Element SC, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless/Power Door Locks/Security System
›
Circuit Diagram
Circuit Diagram

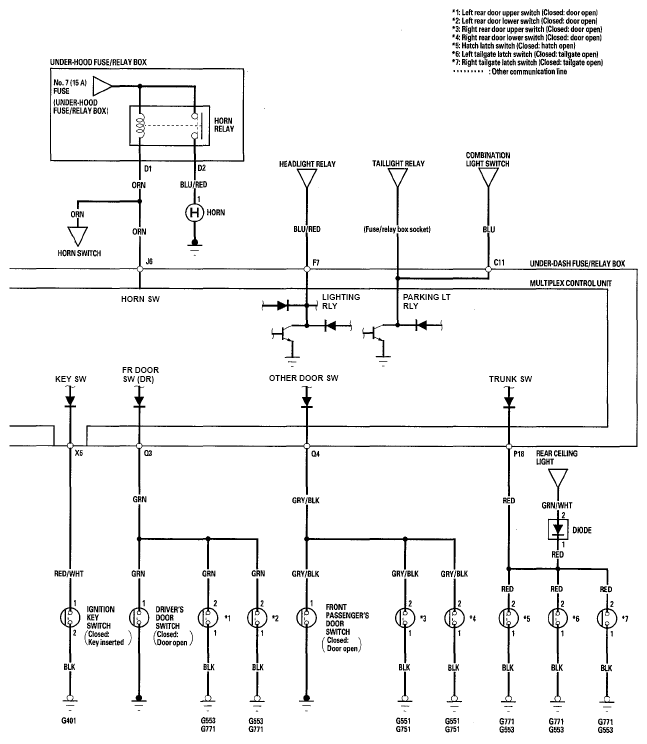

Fig 1: Identifying Keyless/Power Door Lock System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

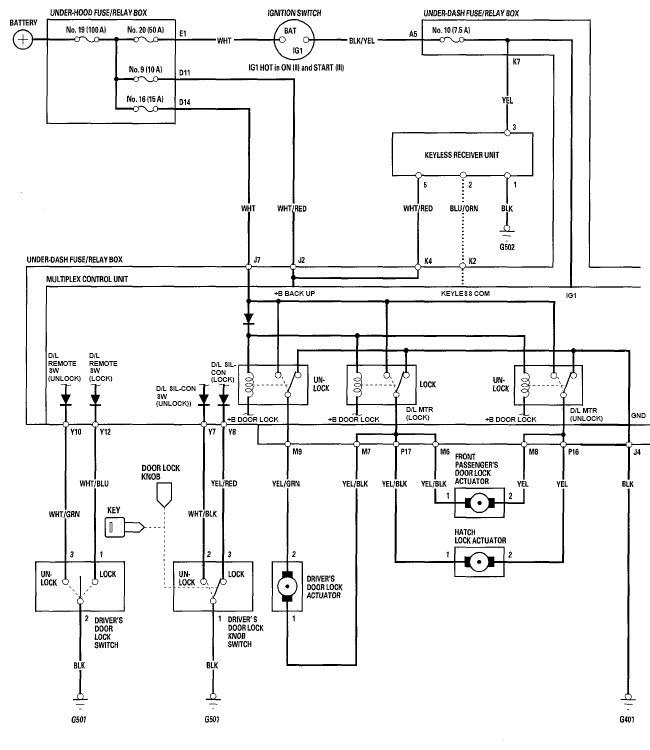

Fig 2: Identifying Keyless/Power Door Lock System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
