Driver's Pocket Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION  ).
  2. From under the dash, push out the lock tabs (A) to release the cruise control main switch (B) ('07-08 models) and the VSA OFF switch (C), then remove the switches. Disconnect the connectors (D, E).
    Fig 1: Identifying Cruise Control Main Switch & VSA OFF Switch Connectors ('07-08 Models)
    G05451029Courtesy of AMERICAN HONDA MOTOR CO., INC.

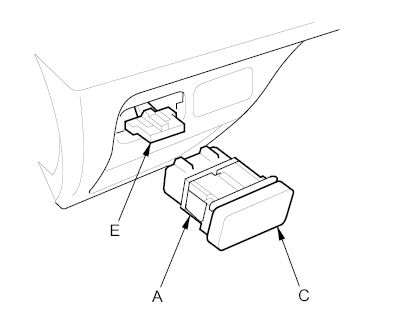

    Fig 2: Identifying Cruise Control Main Switch & VSA OFF Switch Connectors ('09-11 Models)
    G00486264Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. From under the dash, remove the screws (A, B) securing the driver's pocket (C). While pulling out on the bottom edge of the dashboard (D), remove the pocket.

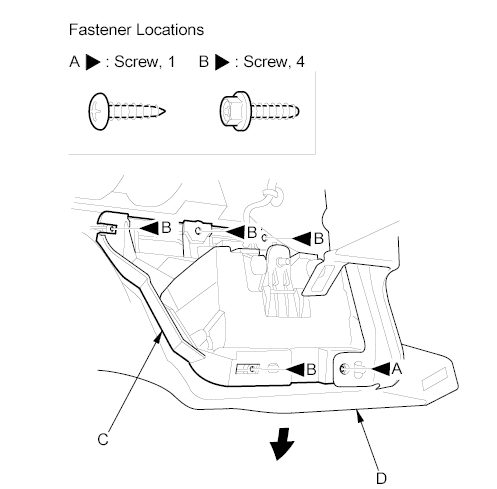

    Fig 3: Identifying Driver's Pocket
    G00486263Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the pocket in the reverse order of removal, and make sure the switch connector is plugged in properly.
