VSA (Vehicle Stability Assist) System Components
›
Circuit Diagram
›
'07-08 Models
'07-08 Models

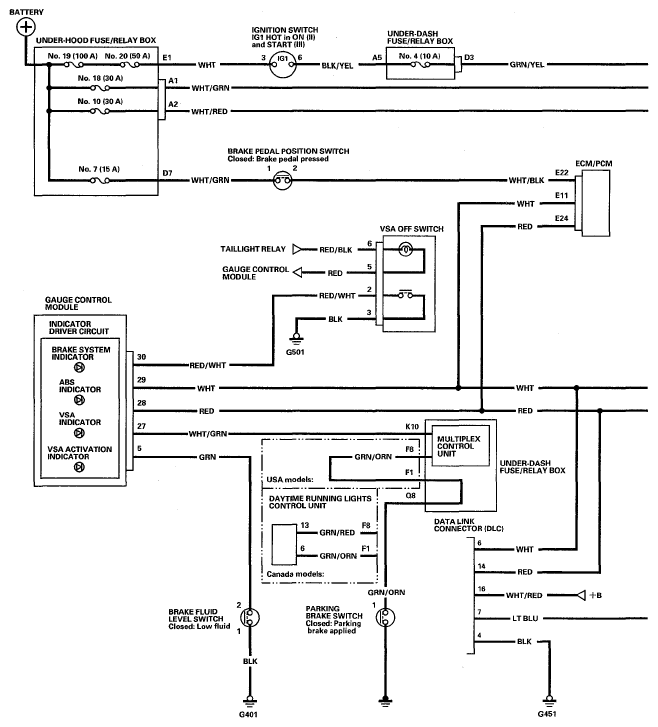

Fig 1: Identifying VSA System Circuit Diagram (1 Of 2) ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

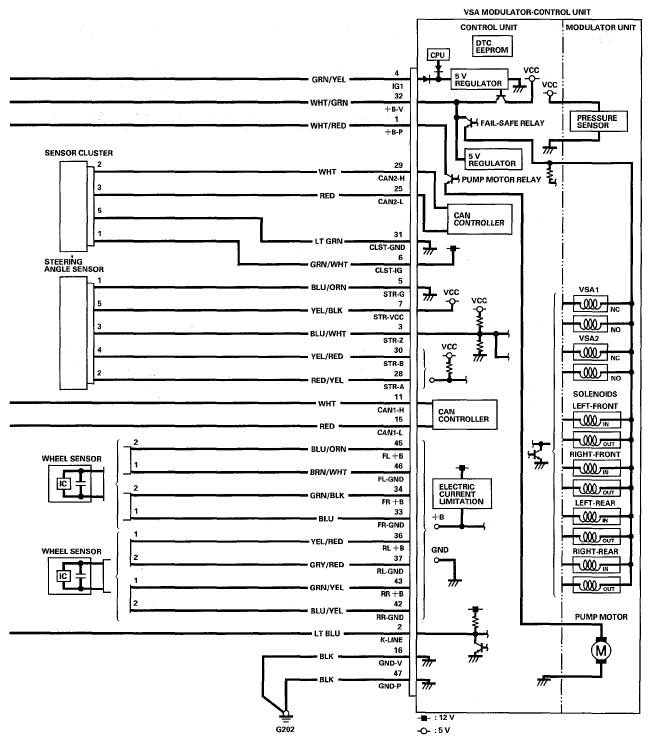

Fig 2: Identifying VSA System Circuit Diagram (2 Of 2) ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
