Relays And Control Unit Locations: Dashboard

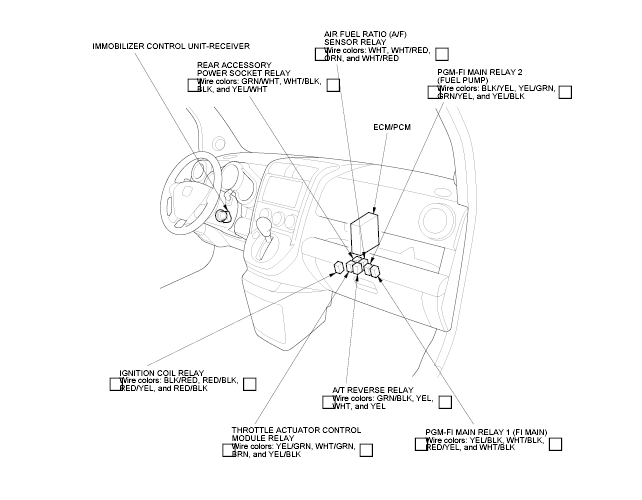

Fig 1: Identifying Relay & Control Unit Locations (Dashboard) (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

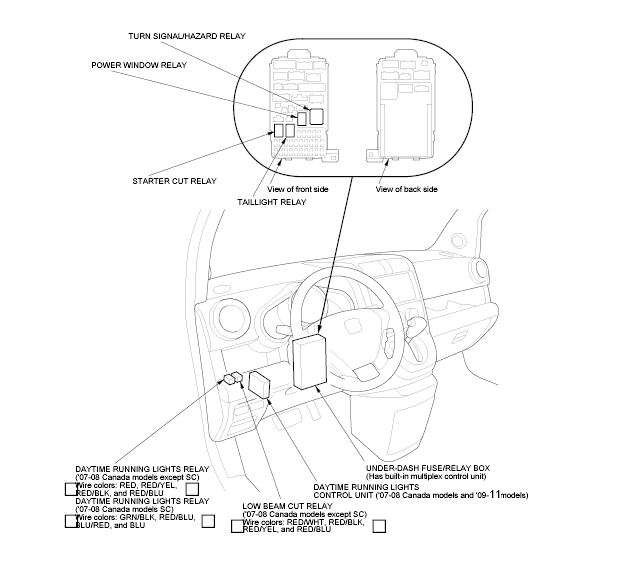

Fig 2: Identifying Relay & Control Unit Locations (Dashboard) (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

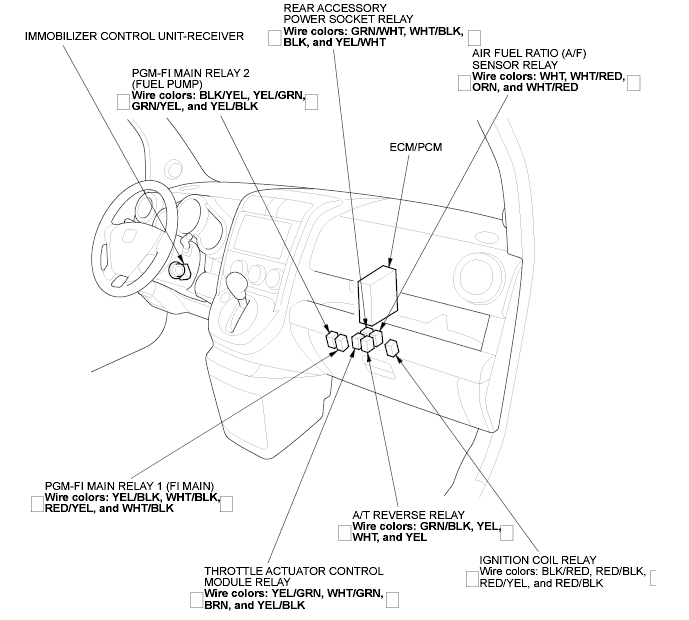

Fig 3: Identifying Relay & Control Unit Locations ('07-08 models) (Dashboard) (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

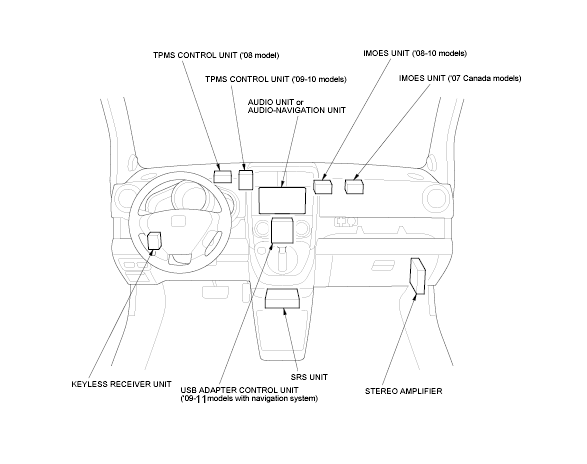

Fig 4: Identifying Relay & Control Unit Locations ('09-11 models) (Dashboard) (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
