Under-Hood Fuse/Relay Box: Removal

Do the battery terminal disconnection procedure (See BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
Remove the screws (A) for the alternator and battery cable terminals from the under-hood fuse/relay box.

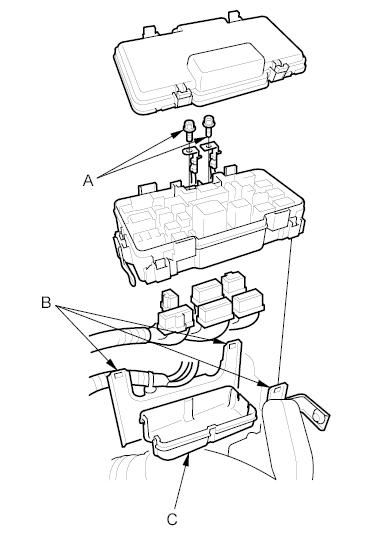

Fig 1: Identifying Under-Hood Fuse/Relay Box
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Release the tab (B), and then remove the bottom cover (C) from the under-hood fuse/relay box.
Disconnect the connectors from the under-hood fuse/relay box.
Carefully remove the relays by using the relay puller.
NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start.
