System Description
›
Vacuum Hose Routing
Vacuum Hose Routing

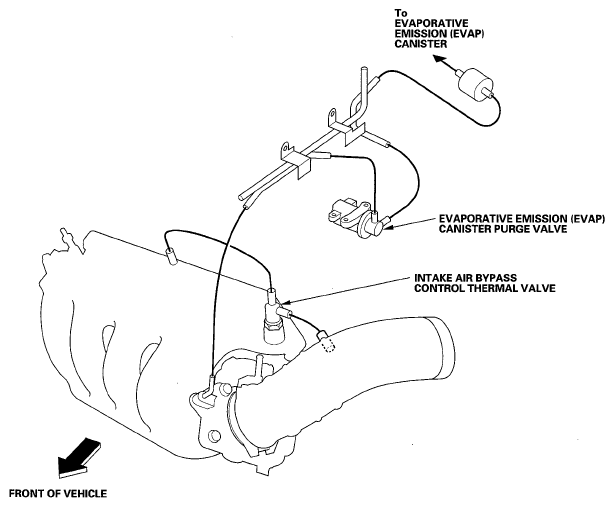

Fig 1: Identifying Vacuum Hose Routing Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
