Front Subframe Torque

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

After removing the subframe mounting bolts, the front subframe middle rubber mount mounting bolts, the front subframe front stiffener mounting bolts, the front subframe rear stiffener mounting bolts, the rear engine mounting base bracket mounting bolts, and the rear engine mounting upper base bracket mounting bolts, be sure to replace them with new ones.

2WD

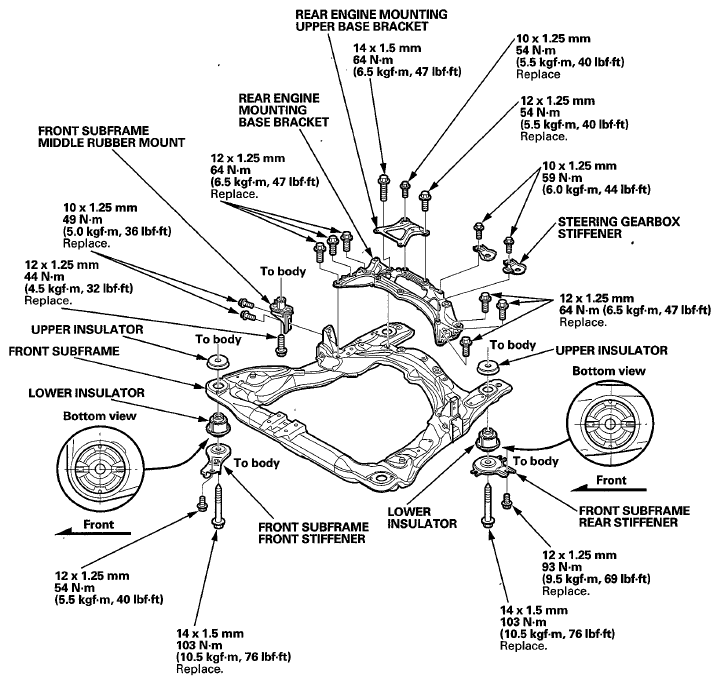

Fig 1: Front Subframe Replacement Components With Torque Specifications (2WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

4WD

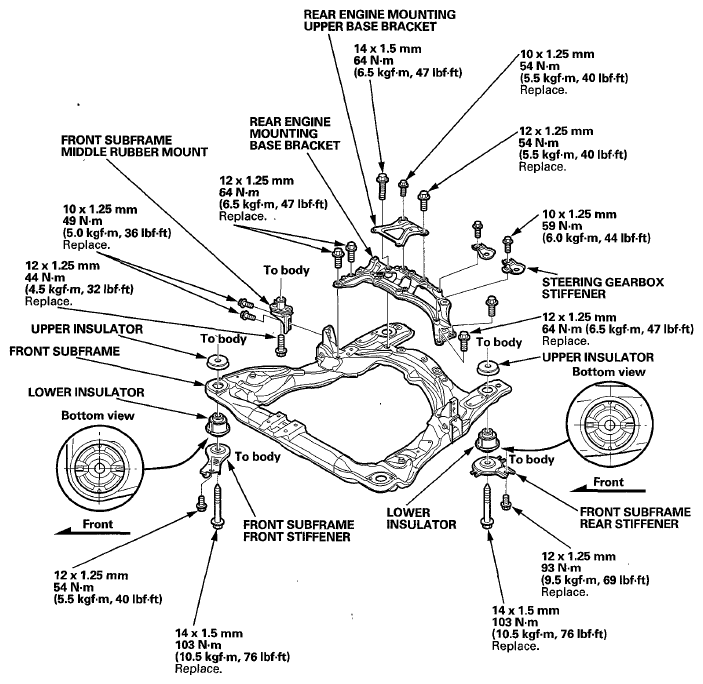

Fig 2: Front Subframe Replacement Components With Torque Specifications (4WD)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
