Rear Subframe Torque

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin.
Always replace any removed subframe mounting bolts with new ones.
The 2WD is shown; the 4WD is similar.

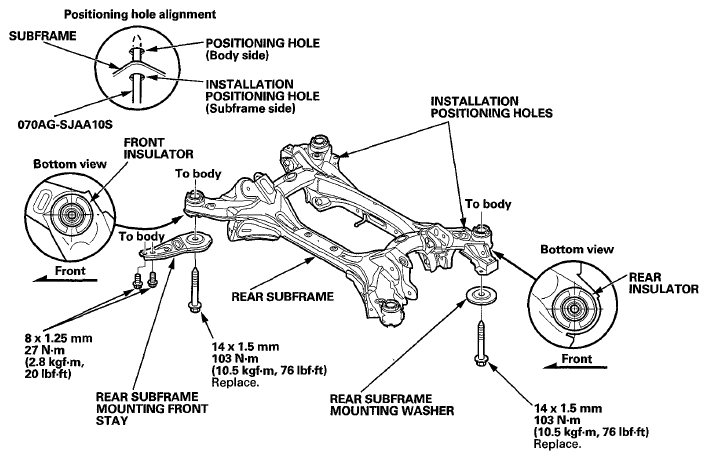

Fig 1: Rear Subframe Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
