USB Jack Replacement

  1. Open the glove box. Remove the glove box stop on each side, then hang the glove box down (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Disconnect the connector (A) and the remove the cover (B)

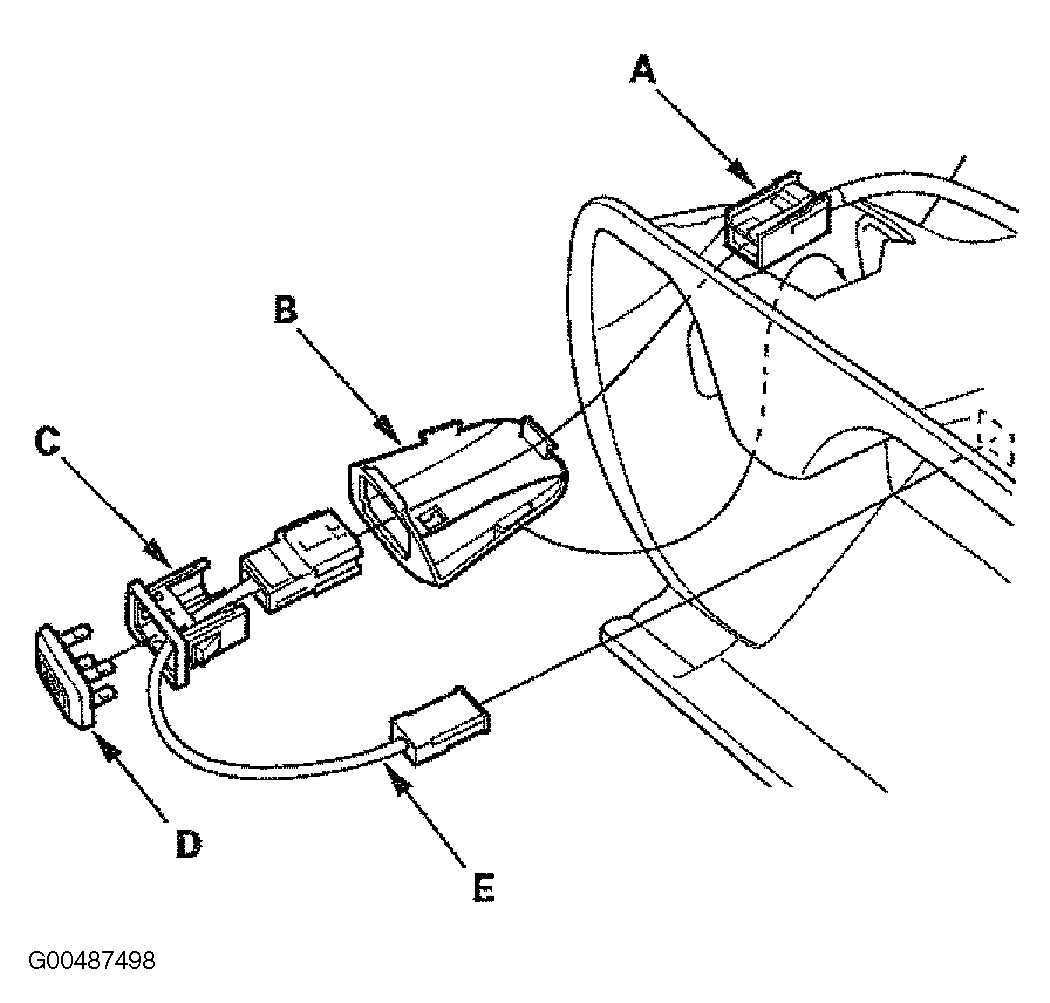

    Fig 1: Identifying USB Jack & USB Adapter Cable
    G00487498Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the USB jack (C) from the cover, then remove the cap (D), and the USB adapter cable (E) from the USB jack.
  4. Install the USB jack in the reverse order of removal
