Washer Tube Replacement

Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
Remove the washer nozzles and clips, then remove the tubes.

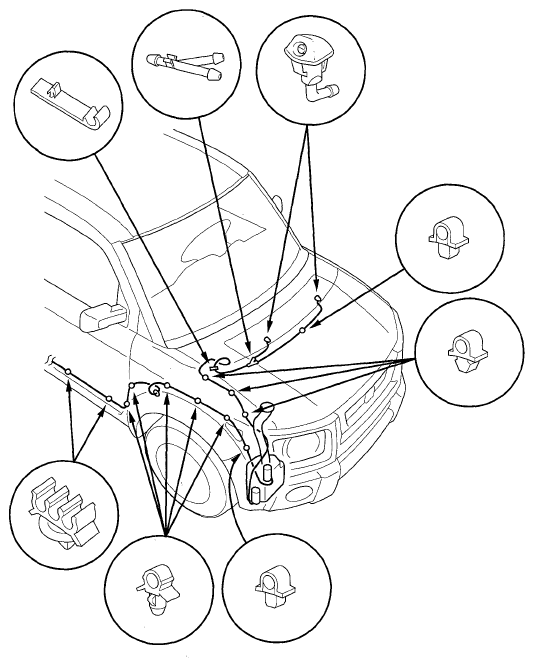

Fig 1: Identifying Washer Tube Replacement (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

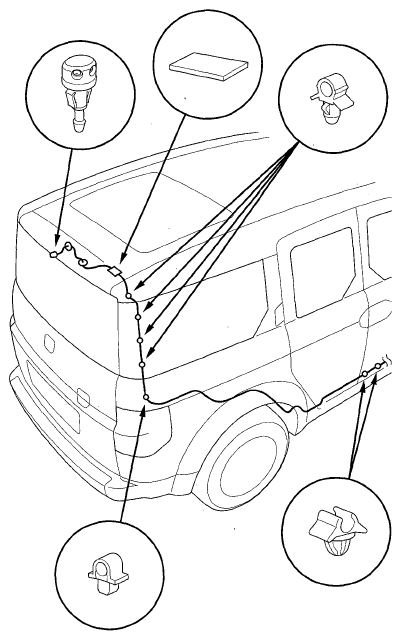

Fig 2: Identifying Washer Tube Replacement (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
NOTE: Make sure the washer tube is routed behind the side curtain airbag tether strap (see SIDE CURTAIN AIRBAG REPLACEMENT ).
