Except SC Models ('09-11 Models)

NOTE:

Take care not to scratch the front seat and related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

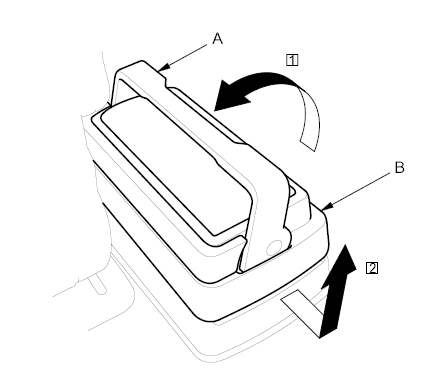

Pivot the handle (A) to the unlock position, and slide the removable cooler/console (B) rearward, then pull it up.

Fig 1: Identifying Handle & Removable Cooler/Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.

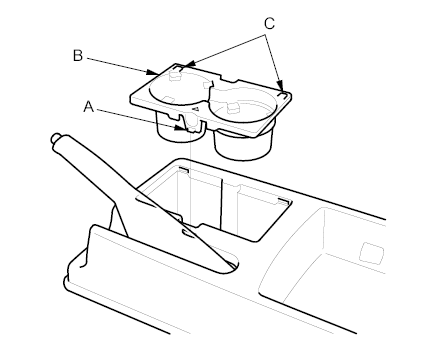

Push in where indicated to release the hook (A), and pull up on the beverage holder (B) to release the tabs (C), then remove the holder.

Fig 2: Identifying Beverage Holder, Hook & Tabs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

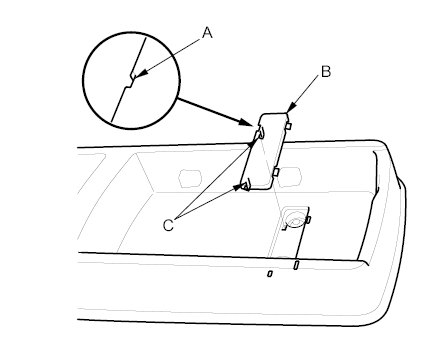

Pry out on the notch of the cover (A) to release the hooks (B) with the appropriate trim tool, then remove the cover.

Fig 3: Prying Out On Notch Of Cover To Release Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.

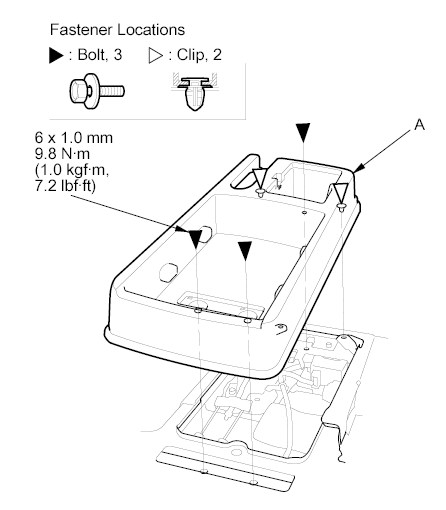

Remove the bolts. Pull up the front edge of the center console (A) to release the clips, and remove the console.

Fig 4: Identifying Center Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the console in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
