Shift Lever Trim Removal/Installation

NOTE: Take care not to scratch trim.
  1. Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).
  2. Pull out the shift lever trim (A) to release the clips and the hooks (B) from the center panel (C).

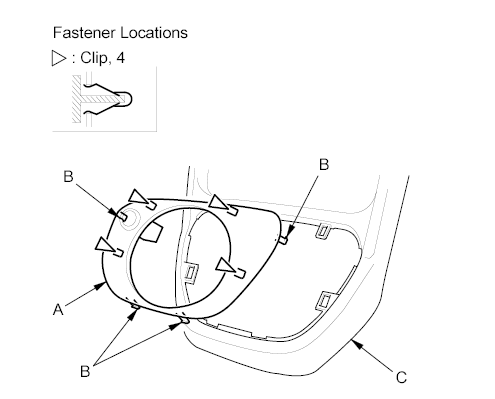

    Fig 1: Identifying Shift Lever Trim
    G00486262Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the panel in the reverse order of removal, and push the clips and the hooks into place securely.
