Component Location Index

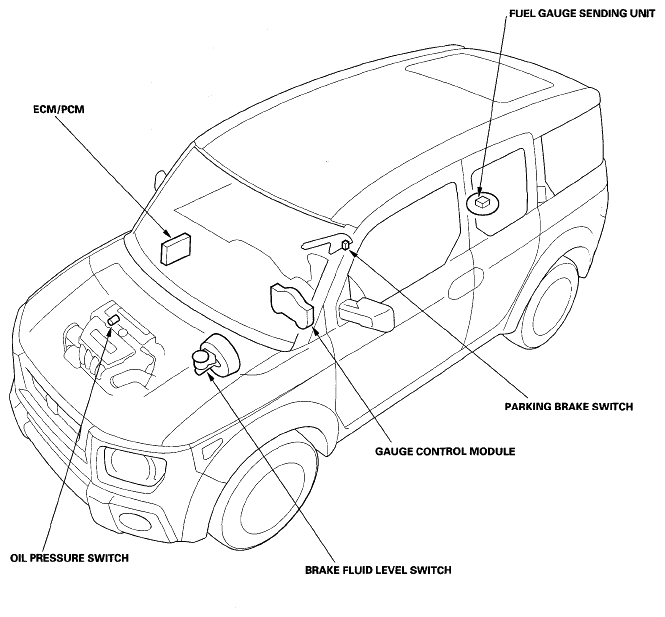

Fig 1: Identifying Gauges Replacement Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Gauge Control Module/Terminal Location Index

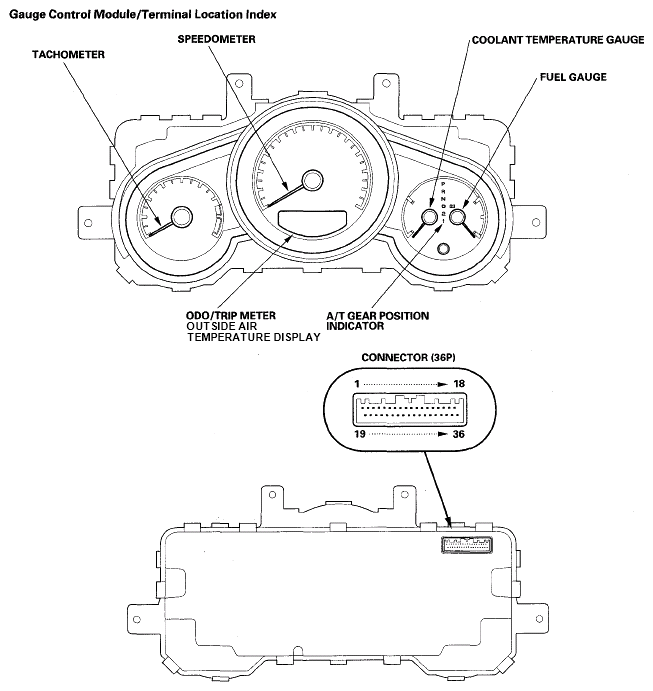

Fig 2: Identifying Gauge Control Module/Terminal Location

Courtesy of AMERICAN HONDA MOTOR CO., INC.
