Component Location Index

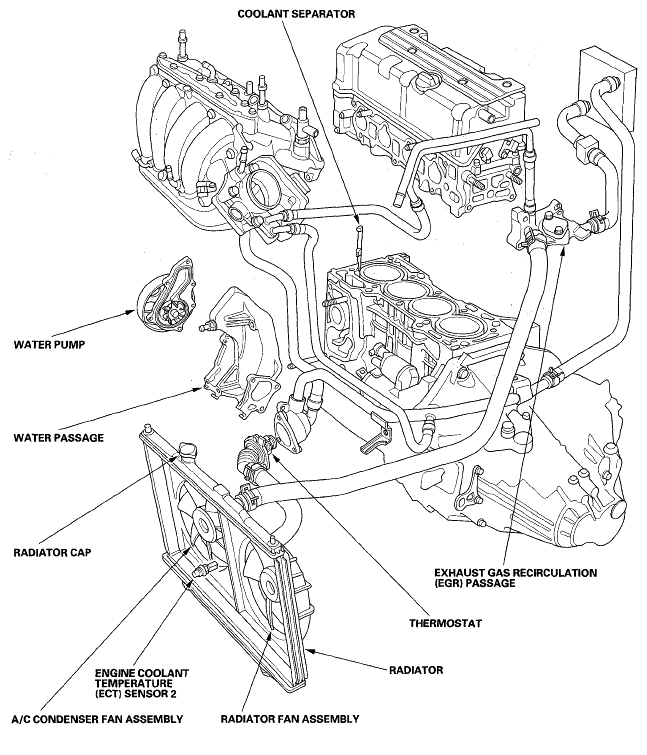

Fig 1: Identifying Cooling System Replacement Components
G05448804Courtesy of AMERICAN HONDA MOTOR CO., INC.
