VSA Modulator-Control Unit Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

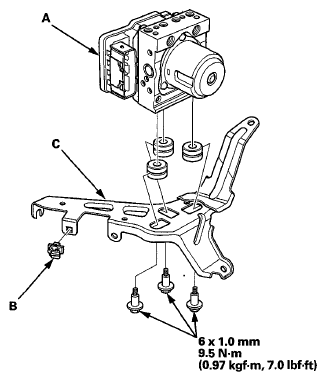

  1. Install the VSA modulator-control unit (A) and the clip (B) onto the bracket (C).
    Fig 1: VSA Modulator-Control Unit, Clip And Bracket With Torque Specifications
    G06423984Courtesy of AMERICAN HONDA MOTOR CO., INC.

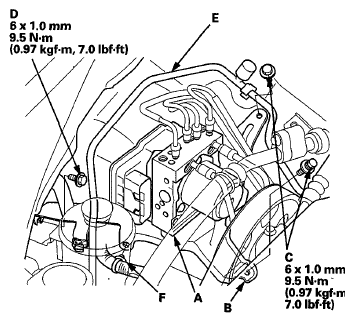

  2. Install the VSA modulator-control unit (A) With the bracket (B) to the body, then install the 6 X 12 mm flange bolts (C) and 6x16 mm flange bolt (D).
    Fig 2: VSA Modulator-Control Unit, Bracket And Flange Bolts With Torque Specifications
    G06423985Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the A/C receiver line (E) and the wire harness clip (F) to the bracket.
  4. Align the connecting surface of the VSA modulator-control unit 22P connector (A) to the VSA modulator-control unit.
    Fig 3: Pulling Up Lever Of VSA Modulator-Control Unit 22P Connector
    G06423986Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Pull up the lever (B) of the VSA modulator-control unit 22P connector, then confirm the connector is fully seated.

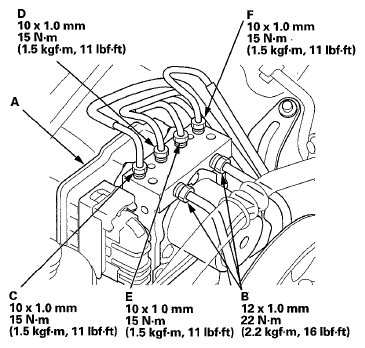

  6. Connect the 10 mm brake lines and the 12 mm brake lines to the VSA modulator-control unit (A).
    NOTE: Brake lines are connected to the master cylinder (B), the left-rear (C), the right-front (D), the left-front (E), and the right-rear (F) brake systems.
    Fig 4: VSA Modulator-Control Unit And Master Cylinder With Torque Specifications
    G06423987Courtesy of AMERICAN HONDA MOTOR CO., INC.

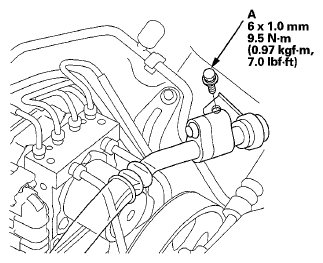

  7. Install the suction line mounting bolt (A) to the bracket.
    Fig 5: Suction Line Mounting Bolt With Torque Specifications
    G06423988Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Bleed the brake system (see BRAKE SYSTEM BLEEDING ).
  9. Do the VSA modulator-control unit update (see VSA MODULATOR-CONTROL UNIT UPDATE  ).
  10. Do the VSA sensor neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION  ).
