Wheel Speed Sensor Replacement: Front

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the clip (A), then disconnect the wheel speed sensor connector (B).

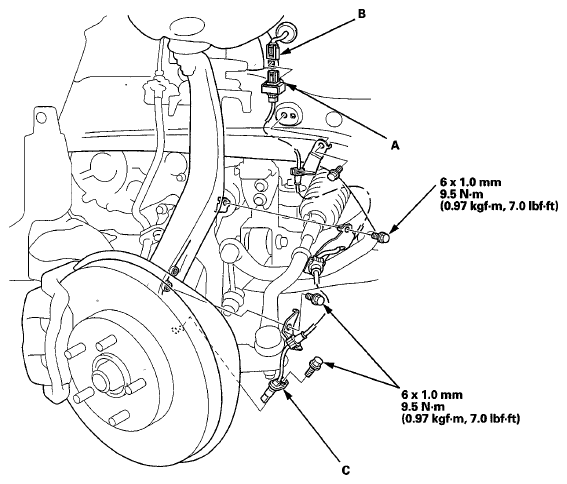

    Fig 1: Front Wheel Speed Sensor Component Location With Torque Specifications
    G06423989Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the wheel speed sensor (C).
  4. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
