With Navigation System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
- Do not work in a dusty or dirty place.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board with your bare hands.
- Do not work with dirty hands.
- Be careful not no fold the flat plate cable.
- Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it, wipe it off thoroughly.)
- Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
- Remove the interface dial (see NAVIGATION DISPLAY UNIT REMOVAL/INSTALLATION ).
- Remove the climate control switch (see CLIMATE CONTROL SWITCH REMOVAL/INSTALLATION ).

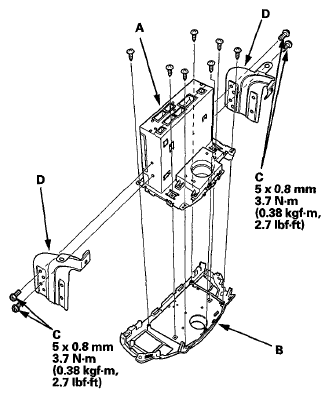

- Remove the self-tapping screws from the audio unit (A), then remove the audio unit from the audio-navigation switch panel (B).
- Remove the bolts (C) and brackets (D) from the audio unit.
- Install the audio-navigation switch panel in the reverse order of removal.
