ANC/Active Sound Control System Check Mode

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Not all self-diagnostic functions appear on all models.
  • There may be other self-diagnostic functions that are for factory use only.
  • Only perform this test when you are guided from a troubleshooting procedure.
  • To restart the check mode, turn the ignition switch to LOCK (0), then enter the check mode.
  1. Turn the ignition switch to ON (II).
    NOTE: Make sure the audio system is turned off.
  2. Push and hold the No. 1 and No. 6 buttons. While holding the buttons, push the VOL PUSH PWR knob to ON.

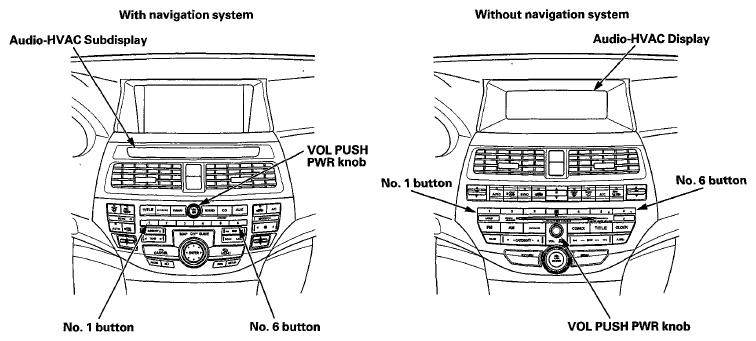

    Fig 1: Identifying ANC/Active Sound Control System Components Location
    G06424273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Press the No. 1 button, the ANC/active sound control system check mode begins.

    How To Check The Active Noise Cancellation System In This Check Mode

    • While in this system check mode, press the No. 1 button to move to the next test item.
    • You must remember how many times you pressed the No. 1 button. The system will not show which test item you are doing.
    • For test items 1 thru 10, the speaker will make a low-frequency hum (50 Hz) when the system is normal for more than 5 seconds up to 1 minute.
    • When there is a failure in the system, the speaker will not make a low-frequency hum (50 Hz) or the hum will stop within 5 seconds for test items 1 thru 10.
    • The check mode will be automatically cancelled when the time reaches 1 minute after the starting each test items.
    • When you reach the 11th test item, the test loops in ON and OFF.
    • This check mode ends when you start the engine (ignition switch in START (III) or turn the ignition switch to LOCK (0), because the power to the audio system is cut off.
    • Since some tests require the engine to be running or stopped, you cannot do all these tests at once. If you need to check test item No. 2, No. 7, and/or No. 11, start the check mode with the engine idling. If you need to check test item No. 9 and/or No. 10, start the check mode with the engine stopped. Other test items are available with the engine running or stopped.
      BUTTON OPERATION CHART

      Test Item No. Test Item Button Operation Number of Times Button is Pressed Display ON/OFF Sound from Speakers when System is Normal Test Available Condition
      -- Self-Diagnostic mode enter Turn the audio unit off, press and hold preset buttons No. 1 and No. 6, then turn the audio unit on. - -- None -
      1st Microphone input, speaker output No. 1 1 ON None Any conditions
      No. 1 2 OFF 50 Hz hum for 1 minute
      2nd NEP input, door/tailgate switch input No. 1 3 ON None
      • Engine idling
      • All doors/tailgate closed
      No. 1 4 OFF 50 Hz hum for 1 minute
      3rd Front speaker output No. 1 5 ON None Any conditions
      No. 1 6 OFF 50 Hz hum for 1 minute
      4th Rear speaker output No. 1 7 ON None Any conditions
      No. 1 8 OFF 50 Hz hum for 1 minute
      5th Front ANC/active sound control microphone input No. 1 9 ON None Any conditions
      No. 1 10 OFF 50 Hz hum for 1 minute
      6th Rear ANC/active sound control microphone input No. 1 11 ON None Any conditions
      No. 1 12 OFF 50 Hz hum for 1 minute
      7th NEP (engine speed signal) input No. 1 13 ON None Engine idling
      No. 1 14 OFF 50 Hz hum for 1 minute
      8th Door/tailgate switch input No. 1 15 ON None All doors/tailgate closed
      No. 1 16 OFF 50 Hz hum for 1 minute
      9th CSSAMA signal (VCM 3 cylinder mode) input No. 1 17 ON None Ignition switch in ON (II) + HDS operation(1)
      No. 1 18 OFF 50 Hz hum for 1 minute
      10th CSSAMC signal (VCM 4 cylinder mode) input No. 1 19 ON None Ignition switch in ON (II) + HDS operation(2)
      No. 1 20 OFF 50 Hz hum for 1 minute
      11th ANC/active sound control operation ON/OFF No. 1 21 ON None Engine speed about 2, 500 rpm (in P or N)
      No. 1 22 OFF Engine noise reduced
      (1) On test item No. 8, select PGM-FI, INSPECTION, SOLENOID VALVE ACTIVATION, ROCKER ARM OIL CONTROL SOLENOID A ON, then press No. 1 button and check test item No. 9.
      (2) On test item No. 9, select PGM-FI, INSPECTION, SOLENOID VALVE ACTIVATION, ROCKER ARM OIL CONTROL SOLENOID C ON, then press the No. 1 button and check test item No. 10.

      Screen Indication ON

      Fig 2: Identifying Audio Unit Screen Display Indication ON
      G06424274Courtesy of AMERICAN HONDA MOTOR CO., INC.

      Screen indication OFF

      Fig 3: Identifying Audio Unit Screen Display Indication OFF
      G06424275Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. To end the ANC/active sound control system check mode, turn the audio unit or turn the ignition switch is turned to LOCK (0).
