Manual Transmission
›
Countershaft Reassembly
›
Exploded View
Exploded View

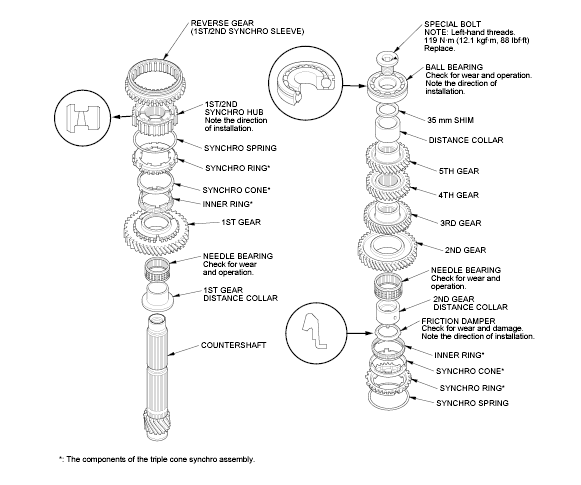

Fig 1: Identifying Countershaft Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
