Manual Transmission
›
Mainshaft Reassembly
›
Exploded View
Exploded View

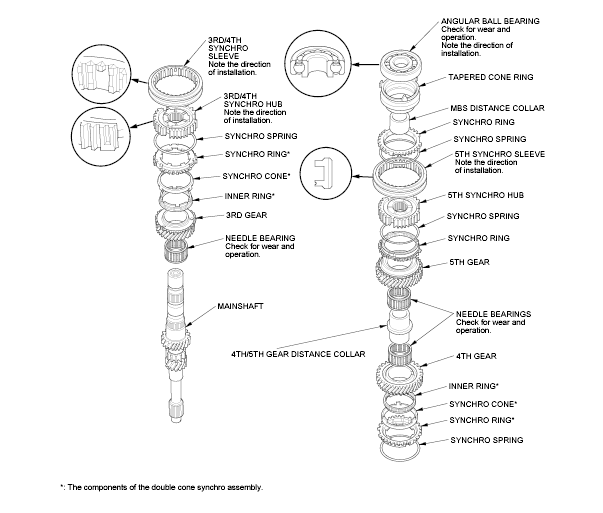

Fig 1: Identifying Mainshaft Replacement Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
