Fit Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Immobilizer System
›
Circuit Diagram
Circuit Diagram

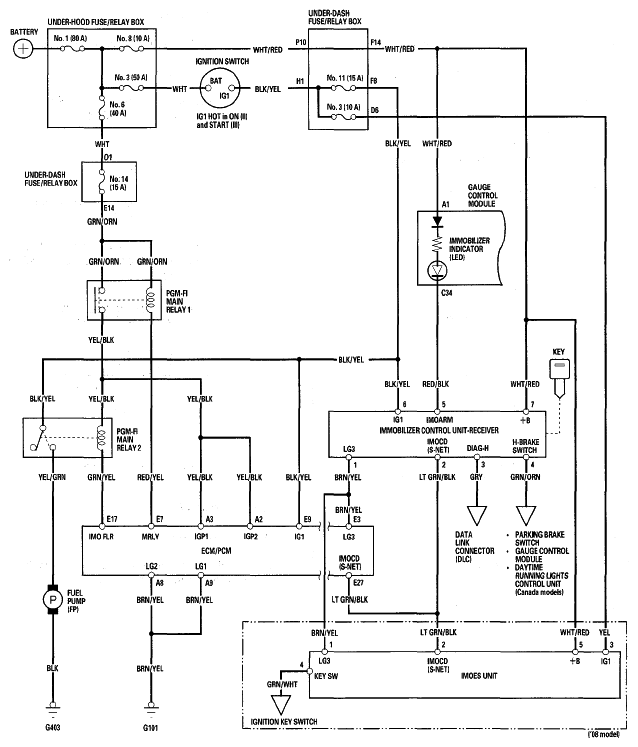

Fig 1: Immobilizer System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
