Exploded View: Notes

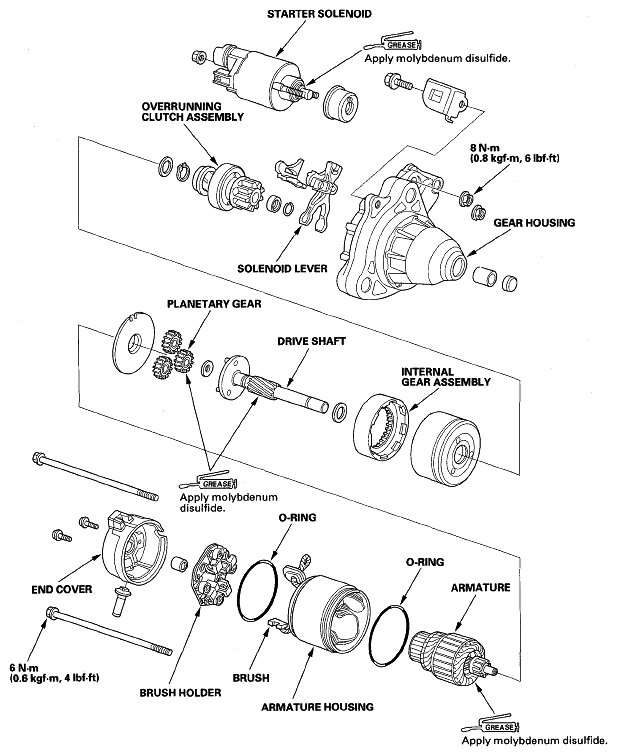

Fig 1: Exploded View Of Starter With Torque Specifications
G05454010Courtesy of AMERICAN HONDA MOTOR CO., INC.
