Engine Mount Replacement

M/T model

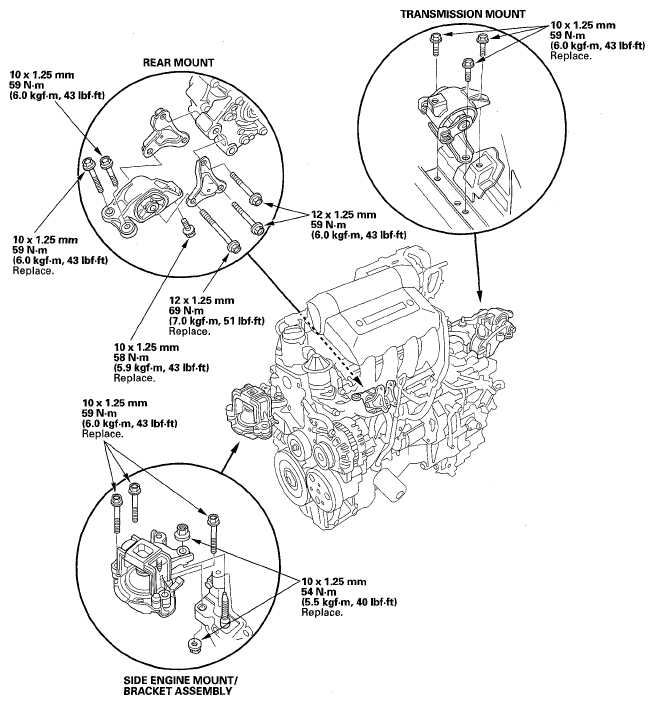

Fig 1: Engine Mount Assembly With Torque Specifications- M/T Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T model

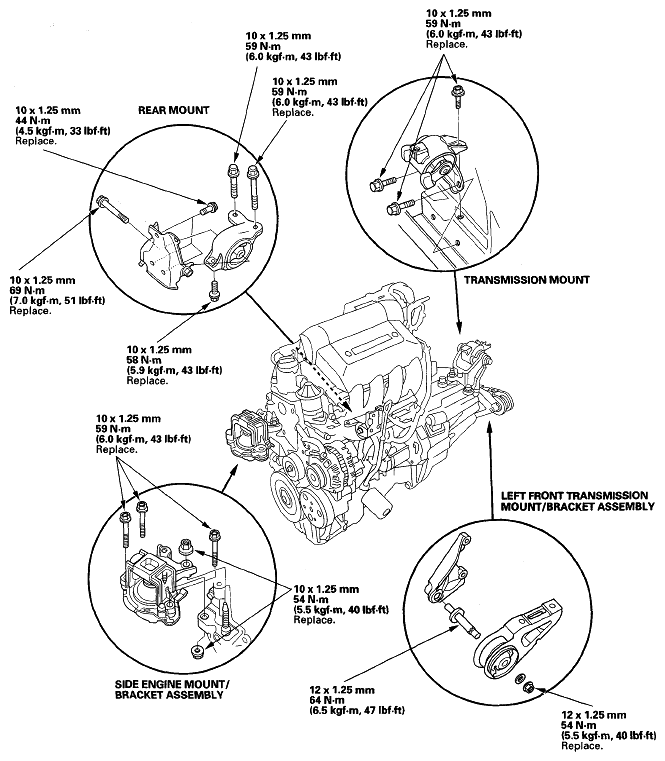

Fig 2: Engine Mount Assembly With Torque Specifications - A/T Model

Courtesy of AMERICAN HONDA MOTOR CO., INC.
