Honda
›
2007
›
Fit Base, Automatic
›
Repair and Diagnosis
›
Engine Mechanical
›
Starter
›
Starting System
›
Circuit Diagram
Circuit Diagram

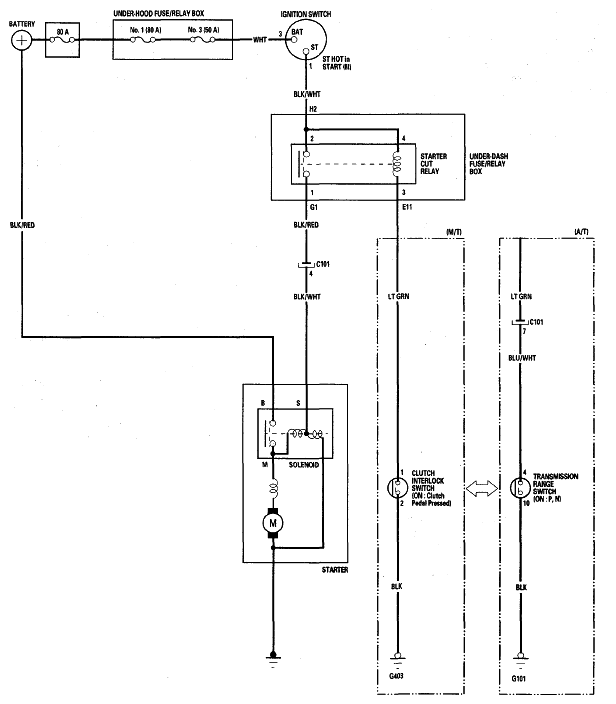

Fig 1: Starting System Circuit Diagram
