Component Location Index
Component Location Index

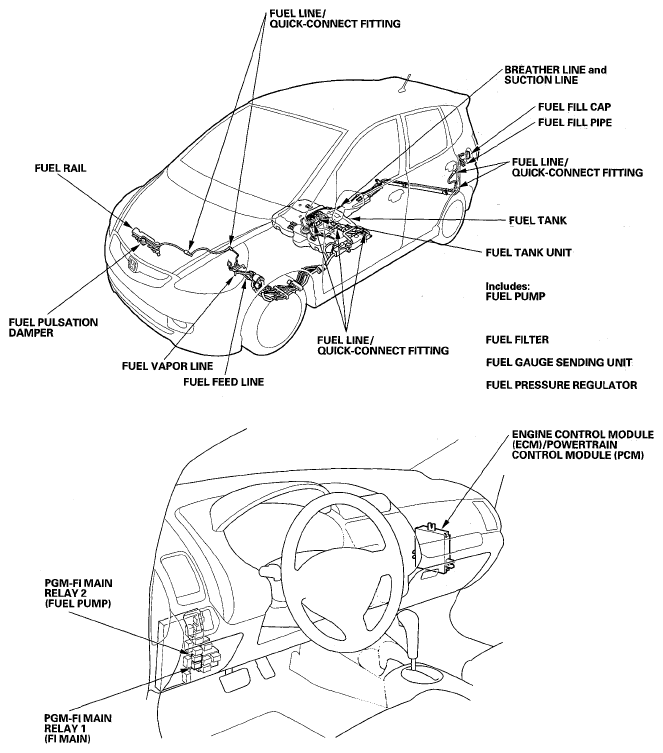

Fig 1: Identifying Fuel Supply System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
