System Structure: Wheels
WARNING: This page is about a different car, the 2008 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

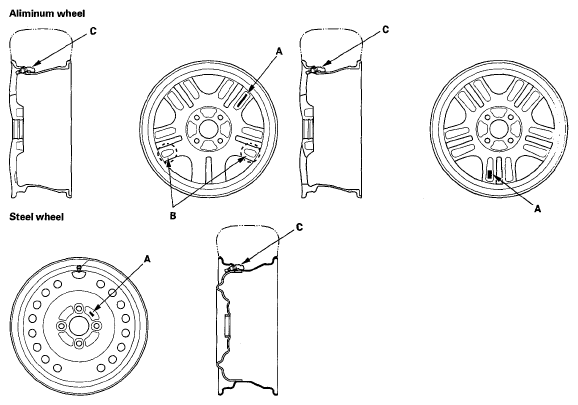

TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark (A) on them and counterweights (B) cast into the opposite side of the spoke to counter balance the weight of the tire pressure sensor (C).
NOTE:
The vehicle is equipped with either aluminum or steel wheels.
