A/C Line Replacement
A/C Line Replacement

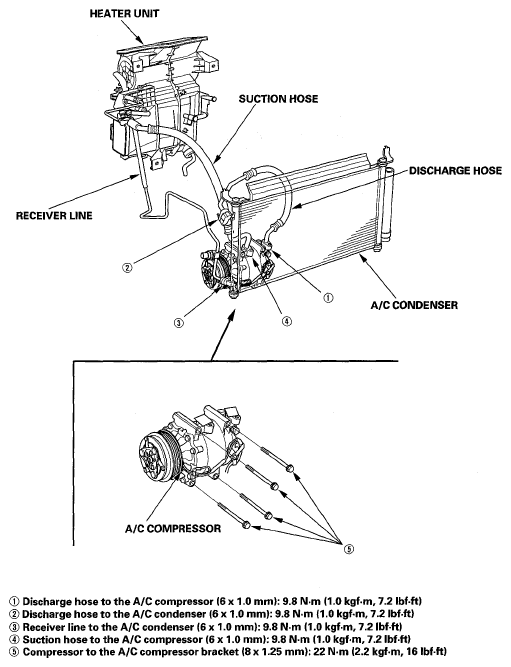

Fig 1: A/C Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
