A/F Sensor Relay/Rear Window Defogger Relay Connector End View
A/F Sensor Relay/Rear Window Defogger Relay Connector End View

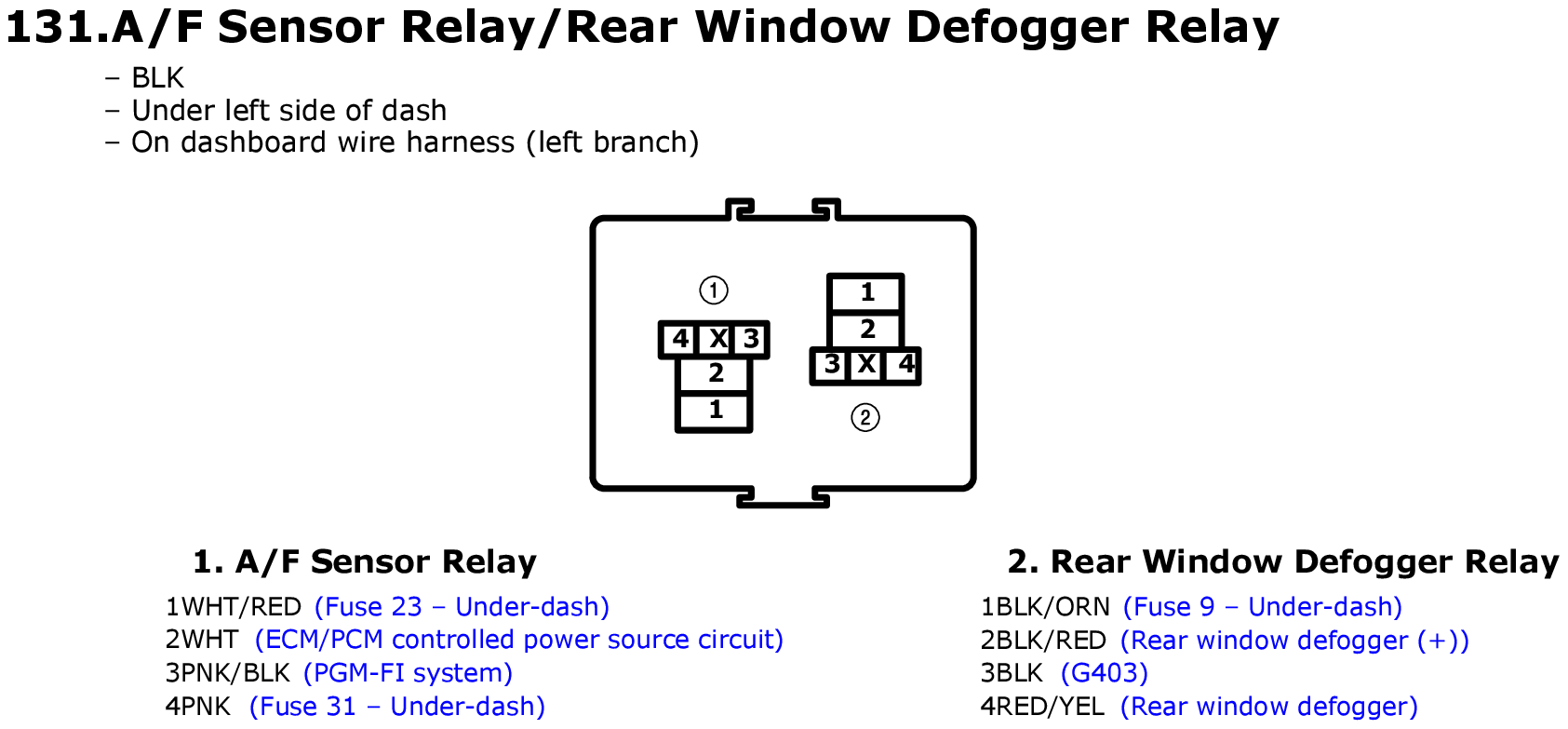

Fig 1: A/F Sensor Relay/Rear Window Defogger Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
