Component Location Index

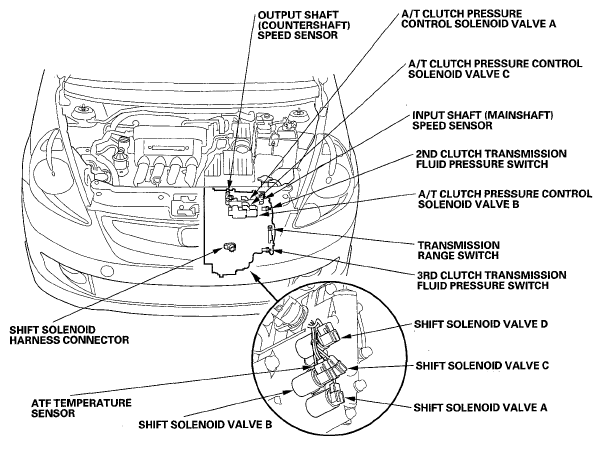

Fig 1: Identifying Automatic Transmission Components Location (1 Of 2)

NOTE: The illustration shows the five-position transmission; the seven-position transmission does not have the paddle shifters.

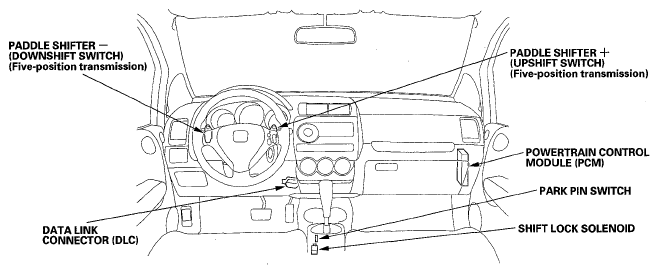

Fig 2: Identifying Automatic Transmission Components Location (2 Of 2)
