PCM A/T Control System Electrical Connections - Five-position Transmission
PCM A/T Control System Electrical Connections - Five-position Transmission

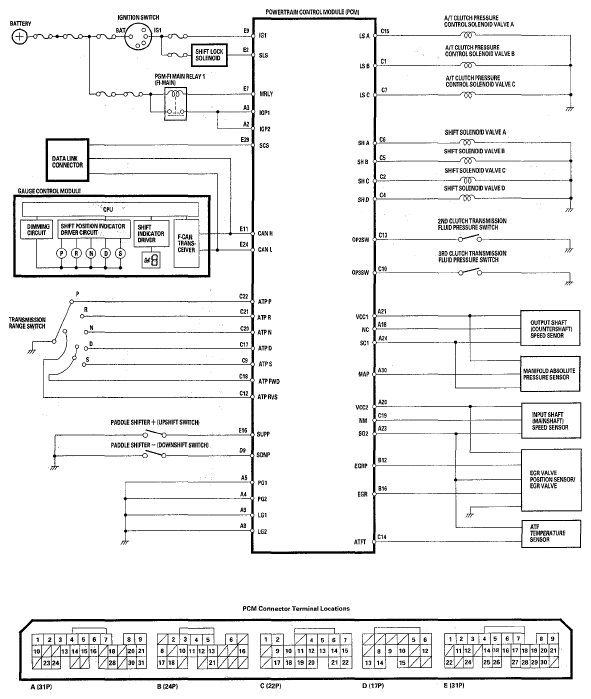

Fig 1: PCM A/T Control System Electrical Connections - Five-Position Transmission
