PCM A/T Control System Electrical Connections - Seven-position Transmission
PCM A/T Control System Electrical Connections - Seven-position Transmission

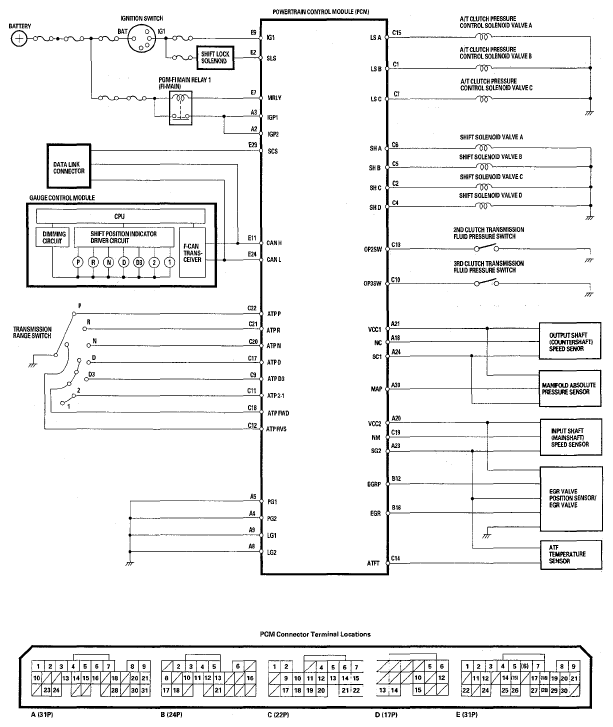

Fig 1: PCM A/T Control System Electrical Connections - Seven-Position Transmission
